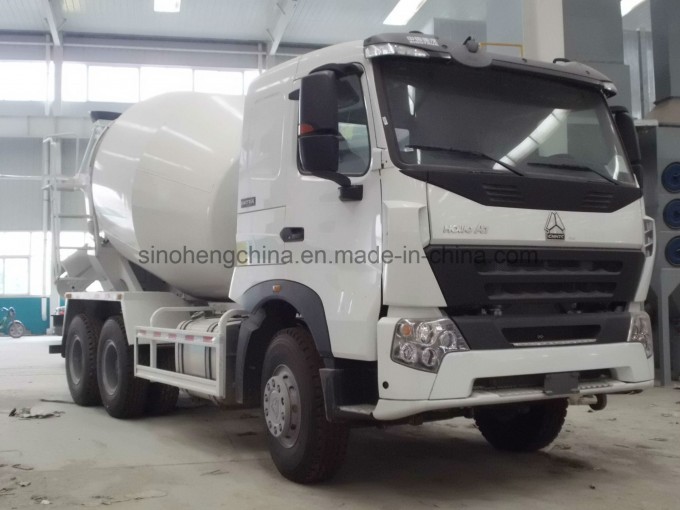

Sinotruk HOWO Competitive Concrete Mixer Truck, Concrete Transportation

Competitive concrete mixer truck, concrete transportation G15SX


Feature:
Geometric volume: 23.7m³
Agitation volume: 15m³
Maximum diameter of the tank: 2432mm

We are the professional manufacture of Concrete transportation in China, We have a yearly production capacity Of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa, South America, Middle East and Russia. We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.

We can also offer:
Concrete mixer of 6/8 suqares
G06ZZ
G06ZZ
G08ZZR
GD08FD
GD10FD

Concrete mixer of 9/10 squares
G10SX
G10ZZ
G10NX
G10NX1
G09SX
G09ZZ
G09NX
G09ZZAL

Concrete mixer of 12 suqares
G12CA
G12DF
G12NX
G12SQL
G12SX
G12ZZ
G12ZZL


Concrete mixer of 14/16 suqares
G16SX
G16NX
G16ZZ
G14ZZM
G14ZZ
G14SQ

Concrete mixer of 15 suqares
G15SX
G15ZZ


Our Advantage:
We can offer the following guarantee
1. Competitive price with perfect quality
2. Quick delivery time
3. The most influential manufacture in China
4. Quick and easy. After-sales service


If the products can satisfy your need, please feel free to contract me so that we can discuss the detail information, thank you.

Type	Model	Unit	G15SX
Performance of mixing drum	Geometric volume	m³	23.5
	Mixing volume	m³	15
	Maximum diameter of drum body	mm	2432
	Length of mixing drum	mm	7009
	Angle of inclination	°	10
	Rotating speed	r/min	0~14
	Charge speed	m³/min	≥3
	Discharge speed	m³/min	≥2
	Residue ratio of discharge	%	<0.7
	Range of slump	cm	5~21
Hydraulic system	Oil pump		international brand
	Motor		international brand
	Reduction gears		international brand
	Hydraulic circuit		Closed type
Water supply	water tank capacity	L	450
	Way of water supply		Pneumatic
Complete machine	Brand of chassis		SINOTRUK
	Chassis model		SX5315GJBJT346
	Type of driving		Left-hand drive
	Curb weight	kg	17000
	maximum gross weight	kg	31000
	Type of drive		8×4
	Wheel base	mm	1800+3375+1400
	Tyre		12.00R20
	Means of power takeoff		Power takeoff by flywheel
	Notice model		XZJ5310GJB2
	External dimensions	(length×width×height)mm	11910×2500×3995
Engine	Model		WP10.375/WP10.380E32
	Rated power	Kw/r/min	276
	Displacement	L	9.726
	Emission standard		GB III

Howo Mixer Truck Trailer Detailes :

Main Products:
As the first class the agent of SINOTRUCK, so we can export the SINOTRUCK tractor head, dump truck, fuel tanker truck, water tanker truck, cargo truck ,concrete mixer truck etc with great price and service advantages.
We can also provide various trailers such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer, stainless steel tank trailer, aluminum tank trailer, car carrier semi trailer, and can be manufactured as special design
Except trucks and trailers, our company also provide SINOTRUK truck parts and construction /engineering machinery such as crane, wheel loaders and excavator etc.

Service:Customers can enjoy great purchase process from our professional sales team. With professional and mature after-sales systems, our service to you does't end after you receive the goods from our company, it is just anew beginning of our cooperation. Ibelieve that you will like us and our products .

Main Markets:Our company has enjoyed great pference by customers from African, South America, middle east, North Asia, South Asia and South east Asia. So far we have export to Philippines, Malaysia, Indonesia, Bangladesh, Myanmar, Vietnam, Angola, Tanzania, Congo, Nigeria, Mozambique, Uganda, Fiji, Ethiopia, Somalia, Iraq, Djibouti, Namibia, Zimbabwe, Liberia, Chile, Peru, Uruguay, Argentina etc.
If you have any needs or consults ,please feel free to contact with us !
