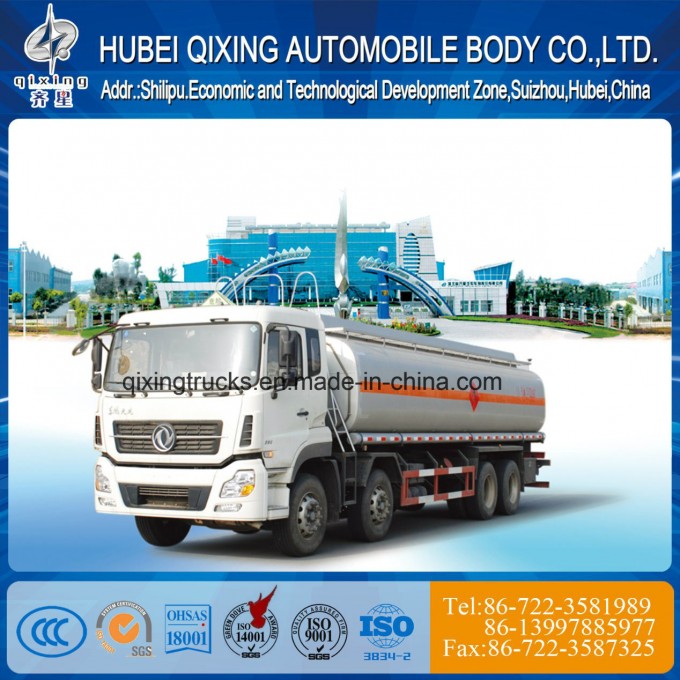

Oil Tanker for Loading Gasoline Truck

oil tanker for loading gasoline truck

QXC5311GYY Specifications:

MainDimensions
Overall Dimensions	11900*2500*3640mm
Tanker Dimensions	8840*2462*1642mm
GVW	31000KG
Curb Weight	11905KG
Loading weight	19095KG

LoadingCapacity 28.4m3

TankBody
Shape		square circle
TotalVolume(m3)		28.4CBM
TankerBodyMaterial		6.00mmAluminiumAlloy5083
Endplate		7.20mmAluminiumAlloy5083
LiftingLadder		IncludingTopwalkwayandbacksideAluminummaterial
Manholecover		AluminumalloyAPImanholecoverwithoilandgasrecoverysystem,500mm, 2setswith2breathervalves
BottomValve		1setsofPneumaticBottomValve,Pneumaticcontrol
Dischargingvalve		1set ,100mmdischargingvalves,APIstandard
No.ofCompartment		1
DischargingPipe		4"rubberhose,2pc,6mlong

Chassis
MainBeams		SpecialdesignIbeam,AluminumSaddlesupport7No'seachside.
Axle		4axles
		BPW13 Ton
LandingGear		JOSTbrandC200,Two-speed,manualoperating,heavydutylandinggear
KingPin		JOSTbrand2"bolt-inkingpin
Suspension		FullsetofBPWbrandAirbagsuspension
PneumaticBrakingSystem		WABCORE6relayvalve;T30/30+T30Springbrakechamber;45Lairtanks.
Wheelrim		11.75-22.5Alloyrim,TaiwanFCTbrand,7piecesincludingonespare
Tire		385/65R22.5tubelesstirewithonesparetire,7pieces,TriangleBrand
ABSSystem		Fittedwith4s/2mType(WABCO,Germanbrand)
OtherDesignandparts		1.·Vaporrecoverysystem. 2.·DustBoardtoCovertheTires 3.·Rearandsidelights. 4.·RearLaddertoaccessthetopofthetanker. 5.·AluminumCrowntowholelengthofTank. 6.·Walkwaywithfoldablehandrail.(airoperated) 7.·ToolBox120cm(WithoutTools). 8.·DoubleSpareTireCarrier(WinchType). 9.·Watertank,Europeantype. 10.4No'soffireextinguisherholder. 11.2No'sofManhole

Character:SGS/ADRcertification oil tanker for loading gasoline truck
Main Tank Material: Alluminum Alloy 5083
Overall Dimensions:11900*2500*3640mm
Overall Weight: 31000Ton
Mayway Assembly: Aluminum Alloy, 20'' self-latching manhole cover, with air-van
Discharge: Pneumatic sea valve, fix all aluminum alloy connector.
Pump System: Optional
Vapour Recover System (API Adaptor): Optional
Surface Treatment: One base coat, one anti-rust,and one finishing coat.
Other accessories: Pipe box, ladder, walkway platfom, toolbox, fire extinguisher, electrical system, lightening, mudguard, side fender accordanced by manufacture standard.
