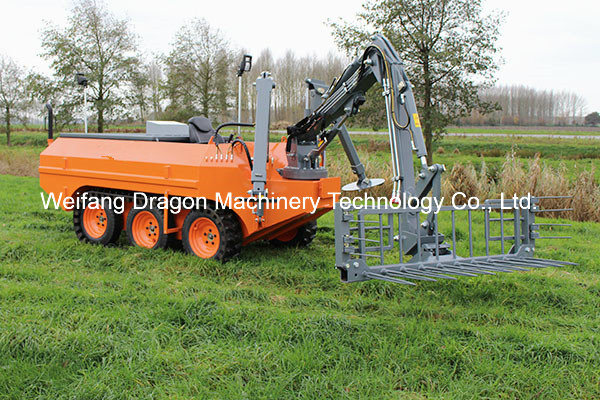

Amphibious Boat with Wheels for Water Surface Cleaning

DRAGON amphibious cleaning vehicle can work in the narrow water environment and on land area. There are two types of the boats for the users to choose: wheel type and crawler type. As one multifunctional boat, we developed more than 10 types of working units to satisfy different work demands, including slurry pump, cutter, backhoe bucket, rake, fork, auger, etc.


The amphibious cleaning boat is driven by hydraulic propeller with forward and backward function. The propeller can adjust the direction in the range of 180 degrees. In the sahllow water area and bank, the propeller can be raised by hydraulic cylinders.


Designed with quick-change connector, the boat can work with different attachments which enables the boat to be a real multifunctional machine.


Aluminium alloy hull decreases the weight of the boat to make it work flexible in the water, but the strong steel tracks ensure its ability to work in hard area.


Specification

Model	DGAMBW77	DGAMBT77
Hull Dimension	4.8 x 2.2 x 1.5m Without Stabilizer Pontoons	4.8 x 2.2 x 1.5m
Hull Material	Aluminium Alloy	Aluminium Alloy
Weight	3.1 t	3.3 t
Installed Power	65 kw	65 kw
Draft	Appro 0.9 m	Appro 0.9 m
Hydraulic Arm Length	2.5 m	2.5 m
Max. Working Depth	1.3 m	1.3 m
Hydraulic Arm Rotary Degree	270 Degree	270 Degree
Lifting Capacity	Biggest Radius:380kg Smallest Radius:560kg	Biggest Radius:380kg Smallest Radius:560kg
Voltage	24 v	24 v
Propulsion Method on Land	Wheels	Tracks
Propulsion Method in Water	Hydraulic Propeller	Hydraulic Propeller
