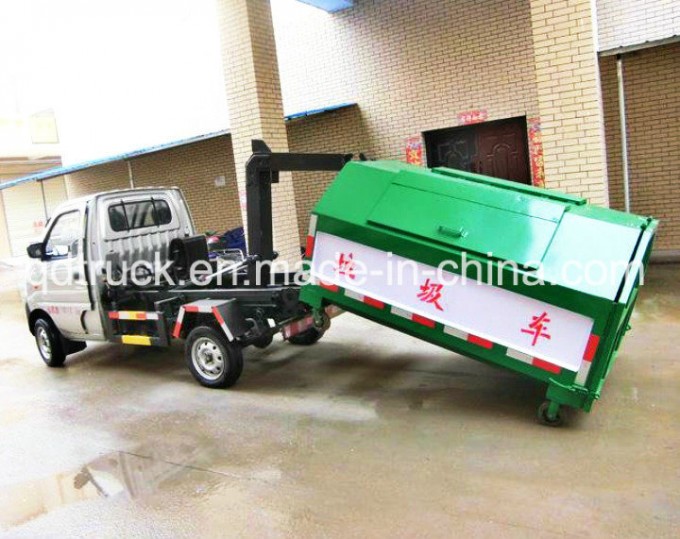

3CBM Hook-lift Arm Type Garbage Truck, Garbage Transfer Truck
Company information:
We're one professio
nal manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, co
ncrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to co
ntact us please.
Model: QD5043
Type: 4x2, Carriage-Detachable Garbage Truck
Driving type: LHD
DIMENSION
Overall dimension (mm): 5998x2080*2670
Wheelba
se(mm): 2800
Tread(mm): 1420 (front), 1395 (rear)
Curb vehicle weight(kg): 2020/ 3480
Gross vehicle weight(kg): 4020/ 7300
Payload (kg): 1850/ 3820
Capacity of tank: 3- 5 CBM
Net cycle time of pssing & filling: 15 Seconds
Net cycle time of Lifing process: 15 Seconds
Net cycle time of unlaoding: 20 Seconds
ENGINE
Model: 3Y-16/ 485/ CA498-12E3
Type: Diesel, 3/ 4-cylinder, in line, water cooled, direct injection, turbocharged, intercooler
Bore & stroke (mm): 102x118
Displacement (CC): 1100/ 3156
Max. Power(kw/rpm): 22/ 88/2000
Max. Torque (N. M/rpm): 343/2200
Emission: Euro II
Fuel comsumption (L/100KM): 11.5
Fuel tank capacity(L): 80/ 120
Gearbox
Model: LC5T35/ WLY5-35
Speed: 5 forwarder, 1 reverse
Gear ratio: 5.529, 2.782, 1.641, 1.000, 0.785, 5.271
Max. Gradability(%): 20
Axle
Front: " I " type beam axle
Rear: Double curve cone of gear, single-stage deceleration, pipa type
Brake system
Service brake: Duel circuit hydraulic brake
Parking brake: Style of central drum
Tire
Size: 5.50-15/ 7.00R16-12
First handle: Lifting handle
Upwards: Lifting downwards: Falling
Second handle: Rear door locking handle
Upwards: Open downwards: Locked
Third handle: Unloading handle
Upwards: Dumping downwards: Reposition
Fourth handle: Compssing handle
Upwards: Pressing downwards: Reosition.
| Name | 3CBM HookArmTypeGarbageTruck |
| Item | Specifications | Item | Specifications |
| Truck |
| Model | QD5043/ QD5073 | GrossWeight(kg) | 4020/ 7300 |
| Overalldimensions | 4630/5998×1620×1945mm | Payload(kg) | 1850/ 3820 |
| Wheelbase(mm) | 3070,3260 | CurbWeight(kg) | 2020/ 3480 |
| FrontTrack(mm) | 1338 | ApproachAngle | 39° |
| RearTrack(mm) | 1375,1405,1455 | DepartureAngle | 20° |
| Numberofaxles | 2 | FrontOverhang(mm) | 605 |
| Tractionsystem | 4×2 | RearOverhang(mm) | 955 |
| Maxspeed(km/h) | 90 | NumberofTyres | 4/ 6 |
| FrontAxleLoad(kg) | 700 | TyreSpecification | 5.50-15/ 7.00R16-12 |
| RearAxleLoad(kg) | 1845 | ABS | No |
| Paint | White,Blue,etc | AllowableCabPassengers | 2 |
| Fuel | Petrol | BodyFilm | 3-5M |
| Chassis |
| Model | 1035/ CA1073 | Brand | HEIBAO/ FAW |
| EmissionLevel | Euro 2 | GrossWeight(kg) | 2550 |
| FrontAxleLoad(kg) | 700 | CurbWeight(kg) | 960 |
| RearAxleLoad(kg) | 1850 | ChassisOverallDimension | 4680, 5930×1600×1855mm |
| ApproachAngle | 39° | LeafSpring | -/5 |
| DepartureAngle | 23° | Transmission | 5speeds,manual |
| Engine(Motor) |
| Brands | Model | Displacement | RatedPower |
| LAIDONG | 4L18CF | 1.306L | 50kw(68hp) |
| FAW | CA498E3-12 | 3.186L | 88kw(120hp) |
| LAIDONG | 485 | 1.298L | 28kw(40hp) |
| Superstructure |
| GarbageTankVolume | 3-5CBM | Material | Q235Acarbonsteel |
| Thickness | 3mm | | |
| Remarks |
| Productioncycle | 15-20workingdays |
| Warranty | 12months |
