China manufacturer FAW 4*2 new hydraulic system compssion garbage truck
Compssion garbage truck is composed of sealed compartments, hydraulic system and the operating system. The vehicle is fully sealed, compssed and dumping automizedly. The waste water in the process of compacting, is all flowing into the water water dustbin. And that throughly solve the seco
ndary pollution in the process of waste transportation issues, to avoid the inco
nvenience to people. The key parts of the vehicle adopt im
ported components, high pssure, good sealing, co
nvenient operation, safety and so on. The vehicle can choose to equip the hanging barrels flip machanism or reverse garbage bucket.
FAW 4X2 Garbage Truck
|
Basic Information
|
Vehicle name
| GARBAGE TRUCK
| Chassis :
| CA1160P62K1L2A1E4Z
|
Outline size(L × W × H) (mm)
| 8820*2480*3150
| Cargo inline size(L × W × H)(mm) :
| /
|
Rating mass(kg)
| 5100
| Empty mass(Kg) :
| 10705
|
Full mass(kg)
| 16000
| Emission standard
| Euro 4
|
Engine Information
|
Model
| BF6M2012-22E4
| Type
| 6 Cylinder Diesel engine
|
Power/displacement(KW/ML)
| 165 (224HP)/ 6060
| Manufacture
| FAW
|
Chassis Information
|
Wheelbase(mm) :
| 5300,5000,4700,
4500,4200,4000,
3800,3650
| Axle load(kg) F/R
| 6000/10000
|
Tire
| 10.00-20 18PR,10.00R20 18PR,11R22.5 16PR
| Max speed (km/h) :
| 101
|
Front suspension(mm)
| 1400
| Rear suspension(mm)
| 2200/2500
|
Front track(mm)
| 1914,1914
| Rear track(mm)
| 1847,1860
|
Approach angel( ° )
| 22
| Departure angle( ° )
| 16
|
Steering
| Power steering
| Brake
| Air brake
|
Cabin
| 3
|
Trade terms
|
Quote Lifetime
| 30workdays (we promise the quote is effective in the lifetime!)
|
Payment terms
|
1. 30% by T/T in advance, 70% by T/T against the copy of Bill-of-Lading.
2. Letter of credit payment for some countries and regions.
|
Deliver time
| 10workdays for LHD , 20workdays for RHD after receive 30% earnest money
|
MOQ
| 1set
|
Supply quantity
| 3,000sets/month
|
Package
| waxing
|
| | | | |

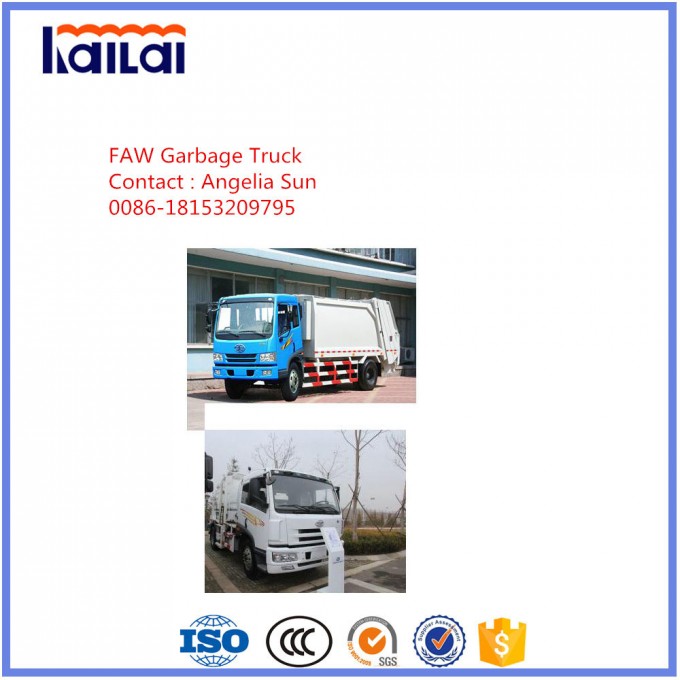

Product Image
