Detailed Description
4x2 do
ngfeng 10ton garbage truck/ 10 cubic meters suction sewage truck
Advantages:
1. All trucks are new and be customized to meet all your requirment.
2. All trucks are with 12 mo
nths quality guarantee.
Thesewage truckis also calledsewer truck,sewage suction truck,vacuum suction truck,vacuum sewage suction truck,sewage suction tanker truck,sewage tanker truck,sewage drainage truck,sewage sucking truck,sewage pump truck,etc. It mainlyused for suckingsepticmaterial andsludgefromdrains,transportationanddischargeofsewagefromseptictank
andsludgefromdrains.And the sewage truck is also used for clean the drainage on the city underground sewers,the industrial pipes, walls and furthermore acts as a sprinkling.Moreover, it can be used to transport water, flush the equipment.
Thesewer vacuum suction with high pssure cleaning truckisequippedwith:
1.Chassistruck,
2.Vacuumtank(Backcovercanbeopened)
3.Powertakeoff
4.Transmissionshaft
5.Vacuumpump(ratingrotatespeed=1400r/m,minrotatespeed>800r/m,maxsuctionlift>6m,vacuum>500mmHg)
6.Pipeforsuckinganddischargingsewage(Timeforfullsuction<5min)
7. Levelinspectionwindowforobserving
8. Hydraulic Cylinders to dump the sewage quickly
| Descriptions | Specifications and Types |
| General |
|
| Truck Name | Sewage suction truck |
| Production time | 2015 year |
| Max. Speed | 85km/h |
| Drive Type | 4*2 |
| Gross Vehicle Weight(kg) | Approx 16805 |
| FactLoadingWeight (kg) | 10000 |
| Overall Dimensions L*W*H(mm) | 7700x2470x3250 |
| Engine |
|
| Engine Model | B190 33 |
| Engine Brand | Cummins |
| Fuel Type | Diesel |
| Power | 140kw/190HP |
| Emission Standard | Euro III |
| Displacement(ml) | 5900 |
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling |
| Chassis |
|
| Chassis Brand | DONGFENG |
| Front/Rear Axle Load(KG) | 5995/10000 |
| Tire No. | 6+1 spare tire |
| Tire Specification | 10.00-20 Nylon tire |
| Wheelbase (mm) | 4500 |
| Axle No. | 2 |
| Gear Box | 6 speed forward with 1 reverse, manual |
| Steering Wheel | Left hand drive |
| Brake | Air brake |
| Radiator | Suitable for tropical climate |
| Sucking System |
|
| Tank Volume(L) | 10000 |
| Tank shape | Cylindrical |
| Tank Material | 5mm thick carbon steel |
| Vacuum Pump | Double Weilong pump |
| Suction Depth(m) | More than 6 meter |
| Tank Tipping angle(°) | More than 45 |
| Rear door | Open and closed by hydraulic cylinders |

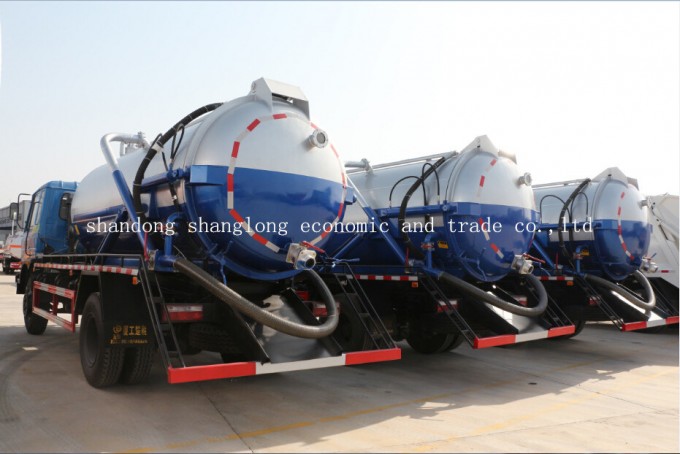

Product Image
