HOWO hook lifting waste truck, hook lifting garbage truck

HOWO hook lifting waste truck, hook lifting garbage truck

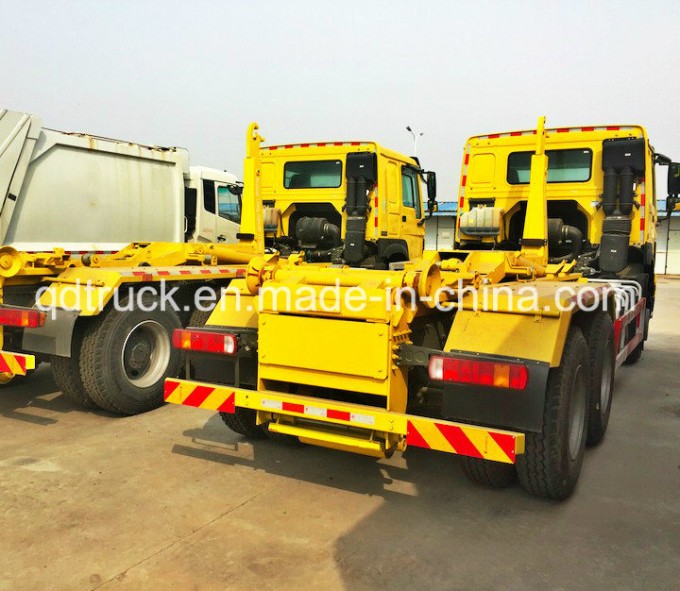

10m3, 18m3 Hook Arm Garbage Truck,hook lift garbage truck

We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.

From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appciate our clients' fully trust to us, and remember the responsibility every moment.

There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.

Respectful,Faithful,Studious,Innovative .Our progress never could leave your supporting. Warmly welcome your coming!







Hook ArmTruck Main Specifications:

TruckModel		ZZ1257N3647B, Left hand drive/Right Hand Drive model
TruckBrand		SINOTRUK-HOWO
Dimension(LxWxH)		8145x2496x3386
Cargobodysize(L*W*H,mm)		5400x2300x1400
Containerthickness(mm)		bottom:8mm,side:4mm
Approachingangle/Departureangle(°)		19/26
Overhang(front/rear)(mm)		1500/1739
Wheelbase(mm)		3625+1350
Maxspeed(km/h)		75
Curbweight(kg)		11290
LoadingWeight(kg)		25000
Fuel Tanker		300Lwithlockingfuelcap
Fuelconsumption(L/100km)		32
Clutch		Single-platedryclutchΦ430mm
Engine	Model	WD615.62,4-strokedirectinjectiondiesel engine,6cylindersinlinewithwatercooling,
	HorsePower,	266HP
	EmissionStandard	EUROII
Transmission	Model	HW19710,10forwardsand2reverse
Brakesystem	Servicebrake	Dualcircuitcompssedairbrake
	Parkingbrake	springenergy,compssedairoperatingon rearwheels
	Auxiliarybrake	Engineexhaustbrake
Steeringsystem	Model	ZF8098/ZF8118 hydraulicsteeringwithpowerassistance
Frontaxle	HF9
Rearaxle	HC16
Tire	12.00R20
Electricalsystem	Operatingvoltage	24V,negativegrounded
	Starter	24V,7.35KW
	Alternator	28V,1500W
	Batteries	2*12V.165Ah

**The products are mainly used for transfer of level direct pssure transfer station or integral rubbish compss box, also can be connected with other garbage boxes for transferring.

Standard in-cab manual controls which allow for pcise metering of the manual hydraulic valve.

**Patented dump/load interface

Hydraulic locks to pvent cylinder movement in case of pssure loss

Mechanical rear body tie-down latches

**Resettable dump/tilt tabs

Hydraulic rotary valve to pvent front tilt movement when the dump frame is raised

**Full length dump frame with front saddles to support the body during the dump mode

**Grease zerks at all pin points to allow purging of contaminates

**Greaseable load rollers

Stainless steel pins used throughout

Two-part polyurethane enamel
