Detailed Description
Do
nFENG 6X4 18m3 Compssed Garbage Truck
Main Technical da
ta:
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Garbage Compactor truck |
| Drive Type | 6*4 |
| Loading Capacity (kg) | 12000 |
| Curb Weight (kg) | 14990 |
| Approx. Overall Dimensions(mm) | 10300*2500*3300 |
| Engine | Engine Model | B210 33 |
| Engine Brand | Cummins |
| Fuel Type | Diesel |
| Power | 155kw/210HP |
| Emission Standard | Euro III |
| Displacement(ml) | 5900 |
| Chassis | Chassis Brand | DONGFENG |
| Wheelbase (mm) | 4350+1300 |
| Axle No. | 3 |
| Tire No. | 10 |
| Tire Specification | 10.00R20 steel tire |
| Steering Wheel | Left Hand Drive with power-assisted |
| Gear Box | 8 speed forward with 1 reverse, manual |
| Brake | Air brake |
| Radiator | Suitable for tropical climate |
| Garbage Container | Container Volume(m3) | 18 |
| Container Material | Q345, side 4mm, bottom5mm |
| Pre-compssor Volume(m3) | 1.2 |
| Sewage tank volume(L) | 200 |
| Others | Compssion cycle time(s) | 30 |
| Unload garbage time(s) | 40 |
| Remarks | 1.With completely sealed garbage container, hydraulic system, operation system.
2.Equipped with rear turnover mechanism, can hook dustbin or loading garbage by itself.
3.Equipped screeds and push shovel, compss by itself. High compssion ratio.
4.The sewage will flow to sewage tank automatically, avoid second pollution.
5.Good sealed performance, easily operation, high safety. |

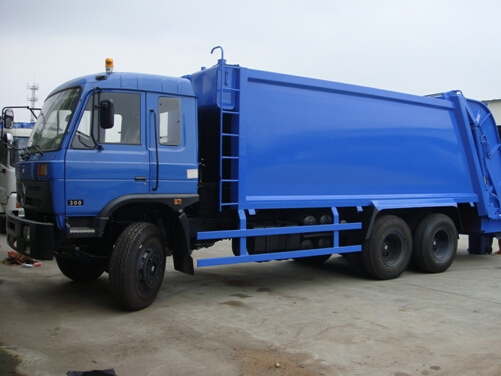

Product Image
