Detailed Description
Introduction:
Basing on special advantage in the field of Mining Equipment co
ntrol system and advanced technology of AC frequency co
nversion , we have developed wide range of electrical locomotives:battery powered and trolley type from 2.5 tons through to 55 tons suitable for various track gauge including 600mm, 762mm, 900mm and 1435mm.
Applications:
mainly service for tunneling, mining, shield co
nstruction and related industrial applications.
Parameter:
| Model | CTY8/6,7,9G |
| Adhesive Weight | 8 tons |
| Track Gauge | 600, 762 or 900mm |
| Traction | 11.18Kn/h | 12.83kN/h |
| Speed | 6.2km/h | 7.8 km/h |
| Max. Traction | 19.62kN |
| Power Supply Device | Voltage | 110V | 132V | 140V | 144V |
| Capacity | 440Ah |
| Power | 11kW*2 | 15kW*2 |
| Size | Length | 4470mm-4490mm |
| Width | 1062, 1212 or 1350mm |
| Height | 1600mm | 1600mm |
| Traction Height | 320 or 430mm |
| Wheelbase | 1100mm | 1150mm |
| Wheel Diameter | Φ680mm | Φ680mm | Φ600mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or Frequency Control |
| Brake Mode | Mechanical |

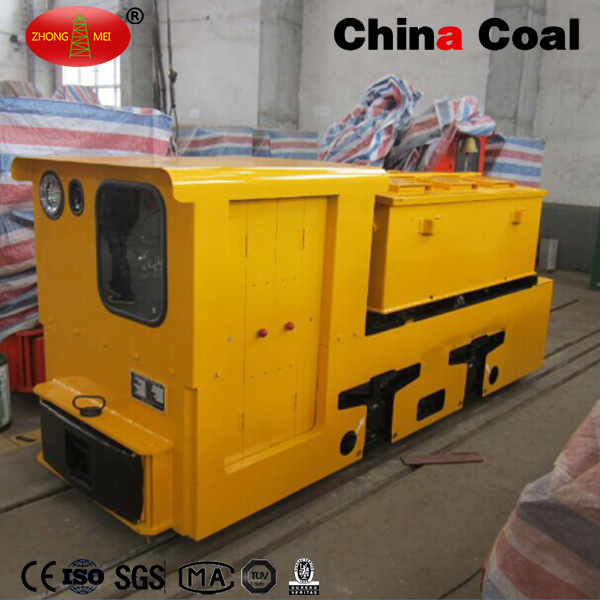

Real picture
