Introduction of1.5 Tons Overhead Trolley Locomotives
The feature of 1.5 Tons Overhead Trolley Locomotivesis traction invert co
ntrol the starting, speed, direction change and braking, which decreased energy consumption, havin
g good electric-saving effect. Invert havin
g shake-proof, damp-proof and dust-proof function, the co
ntrol loop is co
ntrolled by 24V, 0.5A light current, with good safety performance and interlock function when direction change, which avoid damage if driver using anti-vehicle braking. The locomotive with simple construction, low defective rate and easy to maintenance.
Main Characteristics of1.5 Tons Overhead Trolley Locomotives
1. Pneumatic (or mechanical) sanding system to the rails;
2. The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions. Equally, the motor is suspended from the chassis by a brace with springs;
3. The locomotive has two headlights (diodes LED), one in each direction;
4. In order to achieve co
ntinuous and stepless speed regulation, they have an electro
nic speed co
ntroller with high reliability.
Technical Parameter of1.5 Tons Overhead Trolley Locomotives
| Model | CTY1.5 |
| AdhesiveWeight(t) | 1.5 |
| TrackGauge(mm) | 600 | 600,762,900 |
| Traction(kN) | 2.55 | 3.24 |
| Max.Traction(kN) | 3.68 |
| Speed(km/h) | 4.54 | 6.6 |
| Voltage(V) | 100 | 250 |
| Power(kW) | 3.5×1 | 6.5×1 |
| Size | Length(mm) | 2100 | 2370 |
| Width(mm) | 930 | 914,1076,1212 |
| Height(mm) | 1550 |
| Wheelbase(mm) | 650 |
| WheelDiameter(mm) | Φ460 |
| Min.TurningRadius(m) | 5 |
| Controller | Resistance |
| Brake | Mechanical |

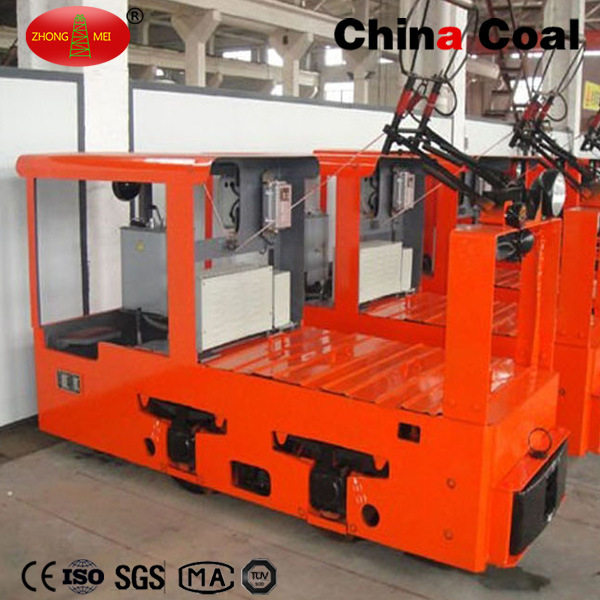

Images of1.5 Tons Overhead Trolley Locomotives
