Detailed Description
Introduction&co
lon;
Basing on special advantage in the field of Mining Equipment co
ntrol system and advanced technology of AC frequency co
nversion , we have developed wide range of electrical locomotives&co
lon;battery powered and trolley type from 2.5 tons through to 55 tons suitable for various track gauge including 600mm, 762mm, 900mm and 1435mm.
Applications&co
lon;
mainly service for tunneling, mining, shield co
nstruction and related industrial applications.
Parameter&co
lon;
| ModelNo.CTY5/5,6,7,9G(B) |
| Specifications |
| Adhesive/totalweight(t) | 5 |
| Trackgauge(mm) | 500,600,762or900 |
| Traction(KN) | 7.06 |
| Max.Traction(KN) | 12.26 |
| Speed(km/h) | 7 |
| Max.Speed(km/h) | 14 |
| BatteryVoltage(V) | 90 |
| BatteryCapacity(Ah) | 385 |
| Power(KW) | 7.5*2 |
| Dimensions | Length(mm) | 3100 |
| Width(mm) | 1034,1082,1220 |
| Height(mm) | 1550 |
| Couplerheight(mm) | 210/320 |
| Wheelbase(mm) | 850 |
| Wheeldiameter(mm) | 520 |
| MinCurveradius(m) | 6 |
| Controller | ResistanceorIGBT |
| Brakingmethod | MechanicalBrake
Electrical/ hydraulic Brake |
Battery Charger Specification&co
lon;
1. Model&co
lon;ZKC90/290
2. AC Input Voltage&co
lon;220V,60Hzor 380V 50Hz
3. DC Output Current&co
lon;90A
4. DC Output Voltage&co
lon;132V

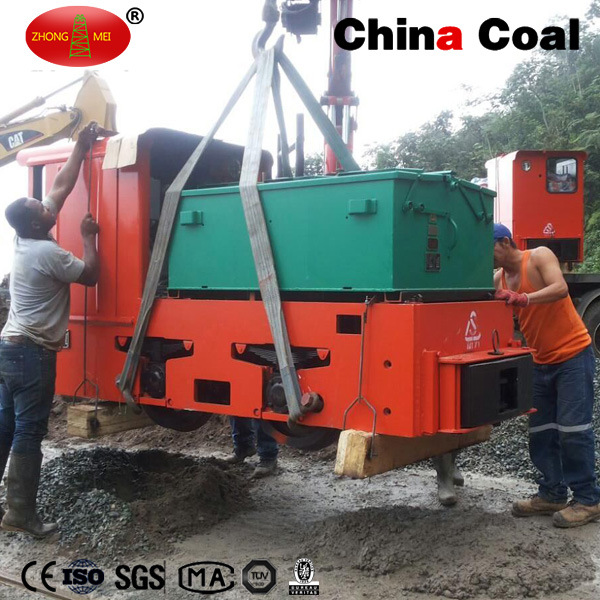

Product Image
