Introduction Of CTY5/600mm Explosion-Proof Battery ElectricLocomotive for Underground Mining
CTY5/600mm Explosion-Proof Electric Locomotives battery Locomotive for Underground Mining is the company
developedsecond generation of the chopper speed co
ntroller electric locomotive(SM 202 smart electric locomotives).
Haveused the most advanced IGBT chopper controller, adding the driver cab's space without adding car body's
length, reformed the power box's lifting device, the locomotive has the characteristics of advancing circuits, simple
control, novel structure, simple operation, comfortable and high reliability, low maintenance cost, energy saving etc
ParameterOf CTY5/600mm Explosion-Proof Battery ElectricLocomotive For Underground Mining
| ModelNo.CTY5/5,6,7,9G(B) |
| Specifications |
| Adhesive/totalweight(t) | 5 |
| Trackgauge(mm) | 500,600,762or900 |
| Traction(KN) | 7.06 |
| Max.Traction(KN) | 12.26 |
| Speed(km/h) | 7 |
| Max.Speed(km/h) | 14 |
| BatteryVoltage(V) | 90 |
| BatteryCapacity(Ah) | 385 |
| Power(KW) | 7.5*2 |
| Dimensions | Length(mm) | 3100 |
| Width(mm) | 1034,1082,1220 |
| Height(mm) | 1550 |
| Couplerheight(mm) | 210/320 |
| Wheelbase(mm) | 850 |
| Wheeldiameter(mm) | 520 |
| MinCurveradius(m) | 6 |
| Controller | ResistanceorIGBT |
| Brakingmethod | MechanicalBrake
Electrical/ hydraulic Brake |

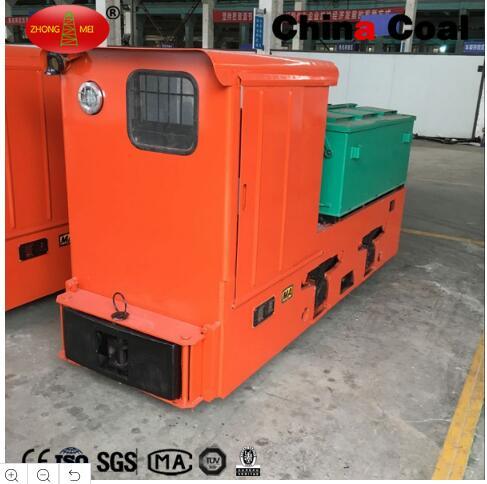

Photos OfCTY5/600mm Explosion-Proof Battery ElectricLocomotive For Underground Mining
Charge OfCTY5/600mm Explosion-Proof Battery ElectricLocomotive For Underground Mining
