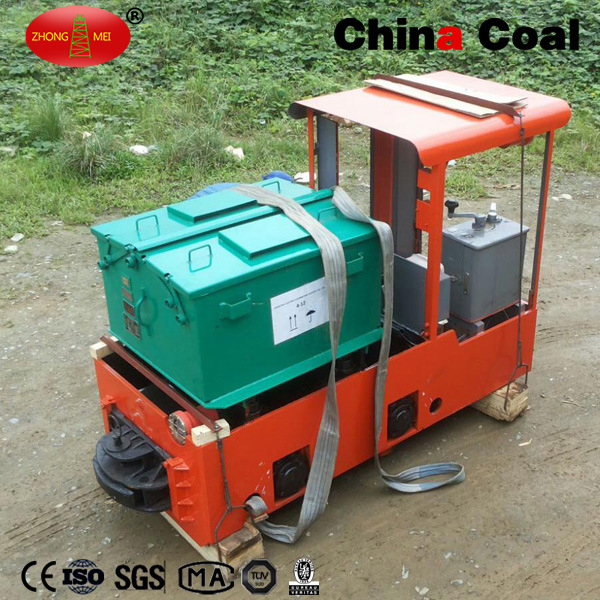

Narrow Gauge Battery Electric Locomotive 2.5-55ton

Introduction OfNarrow Gauge Battery Electric Locomotive 2.5-55ton
Basing on special advantage in the field of Mining Equipment control system and advanced technology of AC frequency conversion , we have developed wide range of electrical locomotives:battery powered and trolley type from 2.5 tons through to 55 tons suitable for various track gauge including 600mm, 762mm, 900mm and 1435mm.

Applications OfNarrow Gauge Battery Electric Locomotive 2.5-55ton
mainly service for tunneling, mining, shield construction and related industrial applications.

ParameterOfNarrow Gauge Battery Electric Locomotive 2.5-55ton

ModelNo.CTY2.5/5,6,7,9G(B)
Specifications
Adhesive/totalweight(t)		2.5
Trackgauge(mm)		500,600,762or900
Traction(KN)		2.55
Max.Traction(KN)		6.13
Speed(km/h)		4.54
BatteryVoltage(V)		48
BatteryCapacity(Ah)		330
Power(KW)		3.5*1
Dimensions	Length(mm)	2330
	Width(mm)	800
	Height(mm)	1550
	Wheelbase(mm)	650
	Wheeldiameter(mm)	460
MinCurveradius(m)		5
Controller		Resistance
Brakingmethod		MechanicalBrake hydraulic Brake

Battery Charger Specification:
1. Model::ZKC90/290
2. AC Input Voltage:380V,50Hz
3. DC Output Current:90A
4. DC Output Voltage:71V
