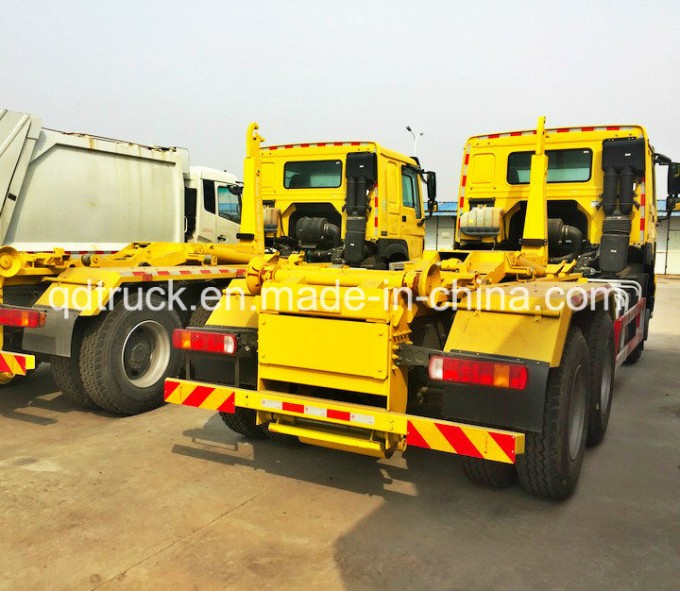

10-18cbm hook lift truck, hooklift garbage truck

10m3, 18m3 Hook Arm Garbage Truck,hook lift garbage truck
Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.





We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.




Hook ArmTruck Main Specifications:

TruckModel		ZZ1257N3647B, Left hand drive/Right Hand Drive model
TruckBrand		SINOTRUK-HOWO
Dimension(LxWxH)		8145x2496x3386
Cargobodysize(L*W*H,mm)		5400x2300x1400
Containerthickness(mm)		bottom:8mm,side:4mm
Approachingangle/Departureangle(°)		19/26
Overhang(front/rear)(mm)		1500/1739
Wheelbase(mm)		3625+1350
Maxspeed(km/h)		75
Curbweight(kg)		11290
LoadingWeight(kg)		25000
Fuel Tanker		300Lwithlockingfuelcap
Fuelconsumption(L/100km)		32
Clutch		Single-platedryclutchΦ430mm
Engine	Model	WD615.62,4-strokedirectinjectiondiesel engine,6cylindersinlinewithwatercooling,
	HorsePower,	266HP
	EmissionStandard	EUROII
Transmission	Model	HW19710,10forwardsand2reverse
Brakesystem	Servicebrake	Dualcircuitcompssedairbrake
	Parkingbrake	springenergy,compssedairoperatingon rearwheels
	Auxiliarybrake	Engineexhaustbrake
Steeringsystem	Model	ZF8098/ZF8118 hydraulicsteeringwithpowerassistance
Frontaxle	HF9
Rearaxle	HC16
Tire	12.00R20
Electricalsystem	Operatingvoltage	24V,negativegrounded
	Starter	24V,7.35KW
	Alternator	28V,1500W
	Batteries	2*12V.165Ah

**The products are mainly used for transfer of level direct pssure transfer station or integral rubbish compss box, also can be connected with other garbage boxes for transferring.

Standard in-cab manual controls which allow for pcise metering of the manual hydraulic valve.

**Patented dump/load interface

Hydraulic locks to pvent cylinder movement in case of pssure loss

Mechanical rear body tie-down latches

**Resettable dump/tilt tabs

Hydraulic rotary valve to pvent front tilt movement when the dump frame is raised

**Full length dump frame with front saddles to support the body during the dump mode

**Grease zerks at all pin points to allow purging of contaminates

**Greaseable load rollers

Stainless steel pins used throughout

Two-part polyurethane enamel
