Detailed Description
| Model | EG202AK | EG202AK01 | EG202AK02 | EG202AK03 |
| System | 48V/3KW AC | 48V/3KW AC | 36V/3KW Sepex | 48V/4KW Sepex |
| Key Components | | | | |
| Battery | 6PCSxT875(145Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | 6PCSxT105(185Ah@5hr rate) | 6PCSxT875(145Ah@5hr rate) |
| Motor | 3KW AC motor | 3KW AC motor | 3KW ADC | 3.8KW Chinese motor |
| Controller | Zapi ACE0 (280A@2minutes) | Zapi ACE0 (280A@2minutes) | Curtis 1243 (300A@2minutes) | Curtis 1268 (400A@2minutes) |
| Performance | | | | |
| Passenger capacity | 2 | 2 | 2 | 2 |
| Range (loaded) based on flat road at aspeed of 30km/h (km)* | >70 | >100 | >55 | >65 |
| Max. speed @12.76:1 gear ratio | 32 | 32 | 21 | 32 |
| Max. speed @10.26:1 gear ratio | -- | -- | -- | 40 |
| Minimum turning radius (m) | 3 | 3 | 3 | 3 |
| Max. climbing ability (loaded)@ 12.76:1 gear ratio | 25% | 25% | 25% | 25% |
| Max. climbing ability (loaded)@ 10.26:1 gear ratio | -- | -- | -- | 20% |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 270kgs | 270kgs | 270kgs | 270kgs |
| Net weight | 460kgs | 510kgs | 456kgs | 465kgs |
| Dimensions | | | | |
| Overall dimensions (mm) | 2410x1180x1800 | | | |
| Min. ground clearance (mm) | 120 | | | |
| Wheelbase (mm) | 1680 | | | |
| Front wheel tread (mm) | 1010 | | | |
| Rear wheel tread (mm) | 1010 | | | |
Seats:2
Fuel Type:Electric
Battery Voltage:48V
Certification:CE
Colour:Pure white,Pure Black,Champagne, red,Navy Blue,me
tallic Green

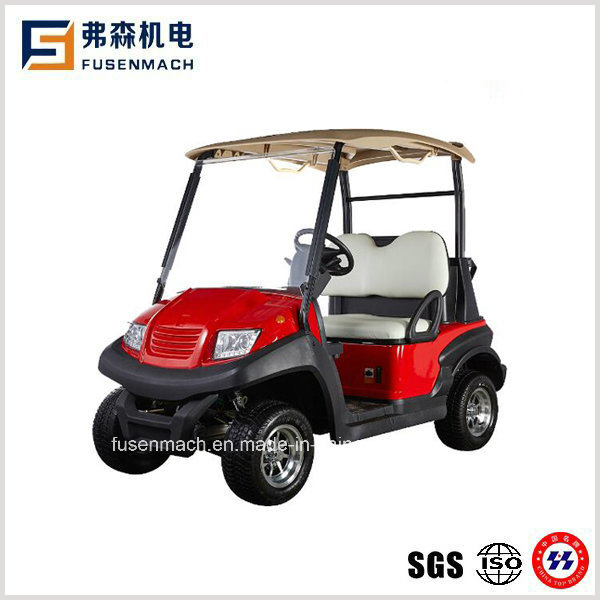

Product Image
