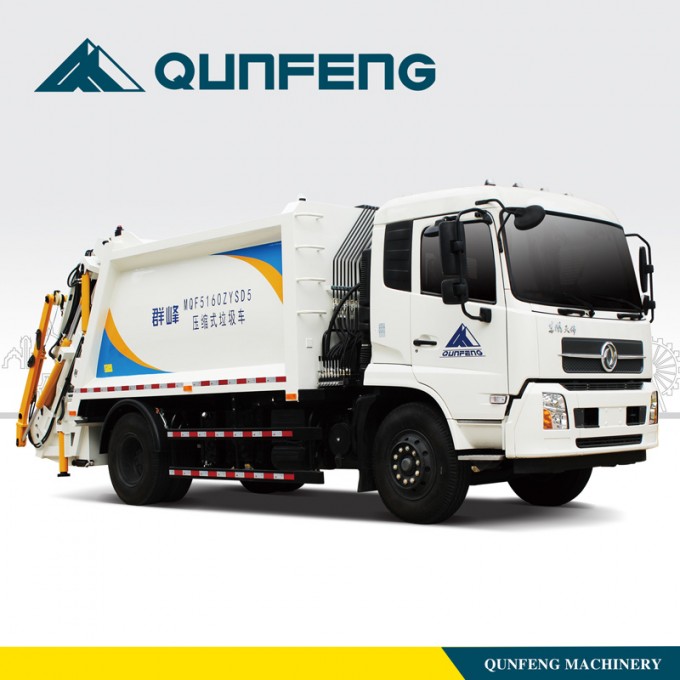

| Model:MQF5160ZYSD44 | ||||||
| Main parameters | ||||||
| (xx )Dimension(LxW x H)(mm) | 8360,8660×2500×3125 | |||||
| ()Axles(pcs) | 2 | |||||
| Wheelbase(mm) | 4500,4200 | |||||
| Axle load(Kg) | 6000/10000 | |||||
| / Front suspension/Rear suspension(mm) | 1430/2730 | |||||
| Garbage bin dimension (mm) | - | |||||
| The max.weight(kg) | 16000 | |||||
| Loading weight(kg) | 5075 | |||||
| The truck weight(kg) | 10730 | |||||
| Trailer total mass (Kg) | - | |||||
| Quality utilization coefficient | - | |||||
| ()Passenger | - | |||||
| Passengers allowed in cab | 3 | |||||
| /() Approach angle/Departure angle(degree) | 20/11.7 | |||||
| Tank volume(m³) | - | |||||
| The max.speed(Km/h) | 90 | |||||
| :Others | 1.; This truck is equipped with driving recorder with GPS function. 2.,:Q235,,110mm×30mm,340mm;:(),504mm; Left and right side protection:materialQ235,bolted connection,section size110mmx 30mm, ground clearance340mm. Back protection:is a part of frame(edgestructure), ground clearance 504mm. 3.4200mm8360mm,4500mm8660mm; When the wheelbase is 4200mm,its total length is 8360mm and when the wheelbase is 4500mm, thetotal length is 8660mm. 4.,ABS,:3631010-C2000,:. The chassis of this truck is equipped ABS(Antilock Brake System), model:3631010-C2000, manufacturer:Dongfeng Electronic Technology Co., Ltd. Brake Systems. 5..Hook can be selected. 6.(L/100km):Fuel consumption: ISDe210 40(26.1),ISDe180 40(26.5),ISDe | |||||
| Chassis technical parameter | ||||||
| Chassis model | DFL1160BX4(Optional) | |||||
| Manufacturer | () DongfengMotor Co. ,Ltd (Optional) | |||||
| (x x ) Dimension(L xW x H)(mm) | 7790,7190, 7490 × 2370,2460 × 2760,2760,2840 | |||||
| /()Approach angle/Departure angle(degree) | 20/18,20/20 | |||||
| Steel spring number | 8/10+8,7/9+6 | |||||
| Type of fuel | Diesel | |||||
| Emission standard | GB3847-2005,GB17691-2005 | |||||
Engine model | Model | Manufacturer | Emission(ml) | Power(Kw) | ||
| ISDe210 40 | Dongfeng cummins engine co., Ltd | 6700 | 155 | |||
| ISDe180 40 | Dongfeng cummins engine co., Ltd | 4500 | 132 | |||
| ISDe185 40 | Dongfeng cummins engine co., Ltd | 6700 | 136 | |||
| EQH180-40 | Dongfeng commercial vehicle co., Ltd | 4752 | 132 | |||
| ISB180 40 | Dongfeng cummins engine co., Ltd | 5900 | 132 | |||
| Tyre(pcs) | 6 | |||||
| Tyre specification | 10.00-20, 10.00R20, 9.00-20, 9.00R20 | |||||
| Front gauge(mm) | 1880 | |||||
| Rear gauge(mm) | 1860,1800 | |||||
| Price:USD67,500 | ||||||
| :Note: 1.The above prices are on the basis of delivery FOB Xiamen Port China. | ||||||
