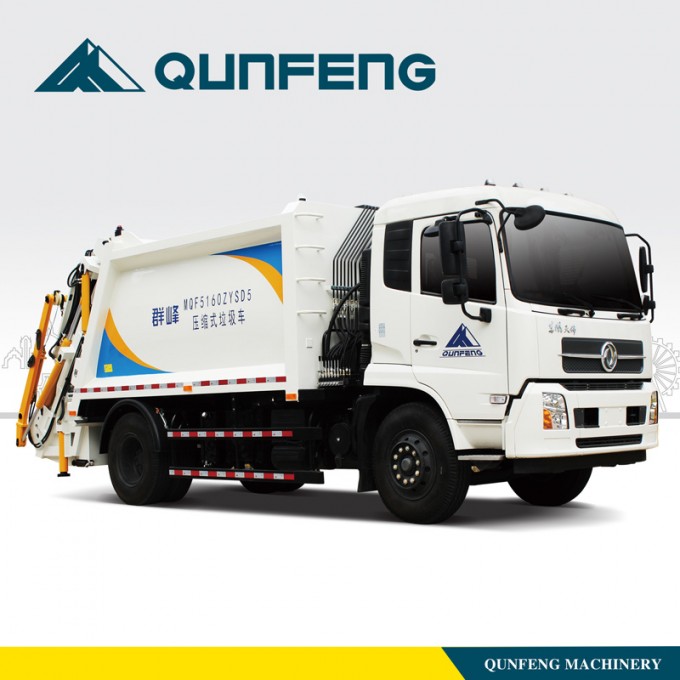

Mqf5160zysd5 Back-Loading Garbage Compression Truck

Back-loading compssion garbage truck
Description:
MQF5160ZYSD5 Back-loading compssion garbage truck is developed basis on European advanced technology and China's basic national conditions. The truck's performance is in domestic leading level and mainly suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
Features:
1. The truck is equipped with domestic advanced Class Two chassis, imported hydraulic and electrical components, which are stable and reliable performance. The drum shape structure is simple and elegant, and made of high-strength manganese, which is strong and durable.
2. Big carriage volume, two-way compssion technology, horizontally compssion cylinder, high compssed capacity and strong loading capacity.
3. Using composite seal and good anti-acid EPDM seal, they are both good sealing performance. There are sewage tanks to collect water in front and rear compartments, to pvent secondary pollution.
4. It's easy and flexible to joint operate with manual and PLC control. All operating actions can be completed in the cab, which enhance reliability and improved safety and comfort.
5. Engine power output is automatic, lower fuel consumption and more economy.
6. Stuffing box has a safety valve lift mechanism and explosion-proof valve, which can improve the safety and also double insurance.
7. The feeding mechanism can choose bucket mechanism (with 330L steel or 240L plastic barrel), the arm mechanism (with 5 m³ ship-shape bucket) .
Technical specification:

Model	MQF5160ZYSD5
Chassis Model	DonGFENG DFL1160BX1V
Engine Model/power(kW)	ISDE 180 50/132
Discharge Standard	V
Outer size(mm)	8530x2500x3080
Carriage Capacity(m³)	13.8
Stuffing capacity(m³)	1.7
Sewage capacity (L)	290+265
Max. speed(km/h)	90
Max. working pssure(MPa)	16
The max.weight(kg)	16000

Good leakage-proof, with front andrear waste water collection boxes avoid the secondary pollution.

240 L (single bin or double bin) or standard 360 L, 660 L, 1100 L bins with hook turning device could be selected.

There are manual and PLC control both in cab and the rear, which make operation more easy and flexible.
