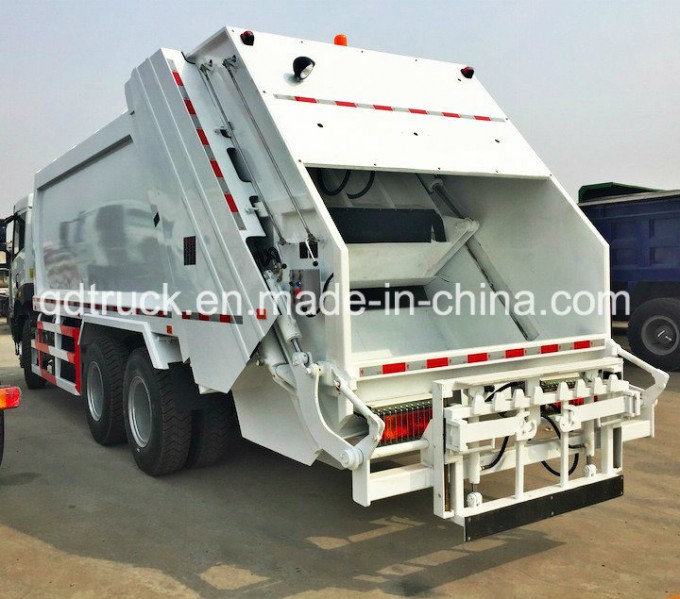

Compssion type garbage truck, compssed garbage truck,15-20 Tons Refuse Truck
We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.
From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties prom
ptly. Our products got almost clients' love and admiration. We appciate our clients' fully trust to us, and remember the respo
nsibility every moment.
There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these o
nly for ensure the high quality and excellent performance.
Respectful,Faithful,Studious,Innovative .Our progress never could leave your supporting. Warmly welcome your coming!
15-20 Tons Refuse Truck
Type: QDT5162ZYSC
Cabin: J5M with A/C
Engine Model: CA6DF3-18E3F
Emission standard: Euro 3
Power (KW): 180HP
Clutch model: 380mm, single plate, dry, diaphragm
Gearbox Model: CA6-85 transmission
Rear Axle: CA435 wheel reduction axle
Rear Axle speed ratio: 5.143.
Wheel & tire: 10.00-20, Model 16Ply Rating
Axle ba
se: 3800mm
Fuel Tank: 180L
Overall dimensions Length: 7895mm
Width: 2500mm
Height: 3500mm
Front overhang(loaded): 1375mm
Rear overhang(loaded): 2720mm
Passing angle(loaded) Approach angle: 19
Departure angle: 13
Parameter Curb weight (kg): 10250
Gross truck weight(kg) 16000 kg
Volume of tank: 12 m3
Volume of Sewage Tank: 400 L.
NOTE:
We are a leading special purpose vehicle & vehicle body manuifacturer from China, our products: Refrigerated truck & body, Insulated truck & body, Dry cargo truck & body, Store/stake truck & body, Explosion-proof truck & body, Dump truck & body, Truck crane & body, Mobile catering truck & body, Mobile stage truck & body, Mobile shop, Mobile kitchen, Cargo van, Medical waste transport truck & body, Box trailer, Any other special purpose vehicle & vehicle bodies, etc.
MAIN SPECIFICATION:
| (CHASISMODEL) | CA1160 |
| OVERALL(LXWXH)DIMENSIONS (mm) | 8795X2500x3190 |
| PRESSURE OF HYDRAULIC SYSTEM (MPa) | 19 |
| (kg) KERB MASS | 9 000 |
| (kg) LOAD WEIGHT | 11 000 |
| (kg/h) MAX SPEED | 75 |
| ENGINE | CA6DF3-18E3F |
| (KW/r/min)ENGINE OUTPUT | 140/1900 |
| GEAR BOX (MANUEL) | CA6-85 |
| tire | 9.00-20-16 tyre |
| ( m3) VOLUME OF BODY | 13 |
| Garbage compssion density | >800kg/m3 |
| ( m3) VOLUME OF FILLER | 1.9 |
| (s)ONE LOADING CYCLE | ≤25 |
| (s)FILLER LIFT TIME | 8-10 |
| (s)ONE UNLOADING TIME | ≤40 |
| (L)SEWAGE TANKER | >400 |
| Manipulator turnover weight | >600kg |
| Type of Manipulator turnover | 300L Round trashcan |
| 240L Square trashcan |
| |
