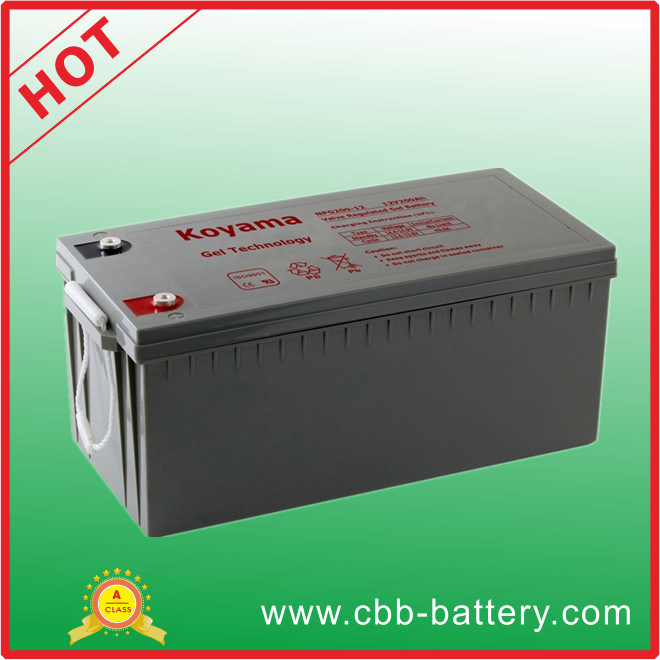

200ah 12V Rechargeable SMF Gel Battery for Railways

Gel battery

Koyama Gel SERIES GEL Batteries are designed with a new hybrid technology that combines gelled electrolyte with AGM separators to provide the benefits of lower resistance and better thermal stability & Cycle life.

Specification:

Gel technology
Longer cyclic life
Better thermal stability

Model No.: NPG200-12
Size: L522*W240*H219*TH244
Weight: 58.8KGS
Voltage: 12V
Nominal Capacity: 200AH
Life year: 8-15 years

Description
By combining the service life reliability of a flooded battery with the performance energy density of a valve-regulated battery, we created a true long service life VRLA battery the gel range. This range offers 8-15 years design life with very good cycling capability, and is highly suited to telecom, UPS, renewable energy system, power stations and similar applications.


Features
-Superior price advantage compared to traditional Gel technology
-High cycle life for service battery applications
-High cranking current for starting and winch applications
-Sealed, maintenance free construction
-Not susceptible to thermal runaway like traditional AGM technology
-Tolerate wide range of charging voltages
-Very low self discharge— Can be left for long periods without charging
-Terminal voltage remains high under load
-Sizes from 24 to 250ah/10hr

Applications:

-Communication system, microwave station, mobile base station, data center, Radio / broadcasting station
-Power plant; Power transmission and transformation system
-Solar energy/ wind power system
-Emergency lighting and signal system
-EPS/ UPS system, etc
-Marine/ Boats /Navigational Aids (sailing boats, motorized yachts, motor boats, etc)
-Leisure vehicles (caravans, mobile homes, etc)
-Engine Starting

Certificates: ISO9001&14001, CE, UL
Standard: JIS, DIN, IEC & BS6290-4

We are one of the leading manufacturers of Deep Cycle batteries for more than 20 years in Guangdong, China. All batteries are excellent quality, well recognizing worldwide and with reasonable Prices. Any inquiries or query would be replied at the earliest date.

Model NO.	Nominal	Rated	Dimensions(±2mm)				Weight	Terminal Type
	Voltage	Capactiy					(Kg)
	(V)	(Ah)	Length	Width	Height	TotalHeight	±5%
NPG24-12	12	24	165	126	174	179	7.8	L6/T3
NPG26-12	12	26	166	175	126	126	8.5	L2/T2
NPG33-12	12	33	196	130	155	179	10.1	L7/T3/L4
NPG38-12	12	38	197	166	174	179	12.4	L6/T3/L7
NPG42-12	12	42	198	166	174	174	13	L7/T3/L3
NPG50-12	12	50	258	134	200	200	15.6	L8
NPG55-12	12	55	229	138	208	226	17.5	L4/T3
NPG65-12	12	65	350	167	178	178	20.3	L9/T3/L4
NPG70-12	12	70	350	167	178	178	21.4	L9/T3
NPG75-12	12	75	260	169	211	231	21.8	L11/T3
NPG80-12	12	80	260	169	211	215	23.5	T3/L11/L4
NPG85-12	12	85	331	174	214	219	25	L12/T4
NPG90-12	12	90	307	169	211	227	27	L13/T3
NPG100-12	12	100	331	174	214	219	30	L12/T4
NPG120-12A	12	120	331	174	214	219	32.6	L12/T4
NPG120-12	12	120	407	174	210	233	34.8	L14/T5
NPG150-12	12	150	484	171	241	241	43.8	L16/T4
NPG160-12	12	160	532	206	216	221	48.5	L17/T4
NPG180-12	12	180	522	240	219	244	55.8	L17/T5
NPG200-12	12	200	522	240	219	244	58.8	L17/T5
NPG220-12	12	220	522	240	219	244	61.4	L17/T5
NPG250-12	12	250	520	268	220	245	71	L17/T5
NPG180-6	6	180	306	168	220	226	27.3	T5
NPG200-6	6	200	260	180	247	251	28.3	T5
NPG220-6	6	220	323	178	224	229	29.8	T5
NPG225-6	6	225	260	180	247	251	30.3	T5
NPG200-2	2	200	170	106	330	367	13.3	T5
NPG300-2	2	300	171	151	330	365	19.1	T5
NPG400-2	2	400	211	176	329	367	26.3	T5
NPG500-2	2	500	241	171	349	368	31.2	T5
NPG600-2	2	600	301	175	331	366	38.2	T5
NPG800-2	2	800	410	176	330	365	52.4	T5
NPG1000-2	2	1000	472	172	338	355	62.3	T5
NPG1500-2	2	1500	401	351	342	378	97.5	T5
NPG2000-2	2	2000	491	351	343	383	131	T5
NPG3000-2	2	3000	712	353	341	382	191	T5
