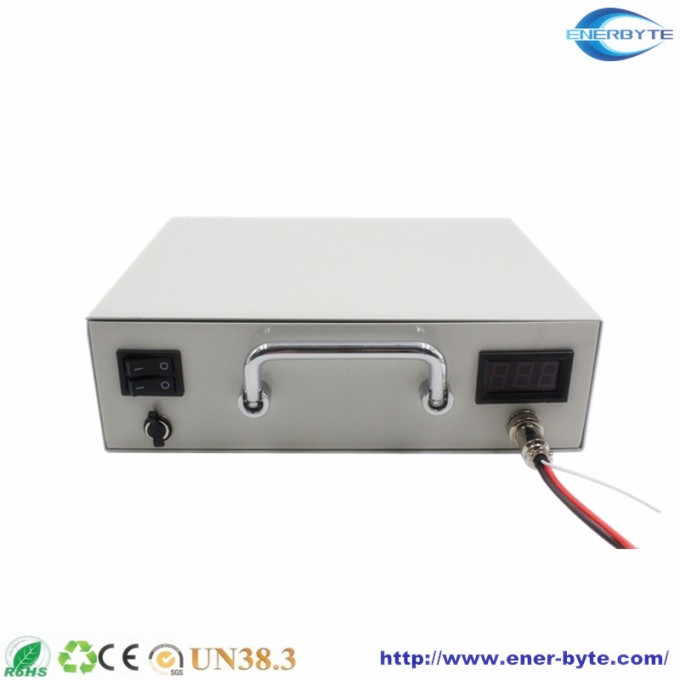

LiFePO4 Battery 22.4V 20ah for High-Speed Railway

Sealed Lithium Battery pack 60V 32Ah
This battery pack is best for replacement of sealed lead acid batteries. Best applications are for electricvehicles and energy storage applications. Custom made battery packs are available.

LiFePO4 Battery Pack Characteristics
Model		TDFP-22.4V20AH
Capacity		20AH
Nominal Voltage		22.4V
Max. Charge Voltage		25.5V
Discharge Cut-off Voltage		17.5V (recommended)
Working Voltage Scope		25.5~17.5V
Max. Charge Current		5A
Continuous Discharge current		15A
Max. Discharge current		30A 3Sec
Weight(Approx.)		6.5Kgs
Battery Dimensions		255x205x75mm(HXWXL)
Impedance (Max, at 1000Hz)		Single Cell≤40 mΩ
Cycle Life (80DOD%)		>2000 Times
Self-discharge Rate		≤3%(month)
Charge Method (CC/CV)	Standard	3A×7hrs
	Quick	4A×5hrs
Operating Temperature	Charge	0ºC~45ºC/32oF~113oF
	Discharge	-20ºC~60ºC/-4oF~149oF

Advantage:

Enerbyte battery packs are using the best quality battery cells which are strictly with assembling standards to match each other. And we have many battery cells available especially lithium and LiFePO4 18650 and 26650 battery cells.
We build OEM customed battery packs with accurate battery size, wiring harness, and various connectors to make sure all the details meets customers'needs.
We use the intellectual BMS and IC to protect the battery pack from short-circut, over-charge, over -discharge, over- temperature and also balancing voltage, and communication functions are available.
The out appearance and casing are available for choose, such as ABS case, iron case, hot shrink film and plastic case.

You can get following if you choose Enerbyte:
* Quality assurance * Reasonable price * Fast shipment
* Logistics support *Customized service * After-sales assurance.




Tianjin Enerbyte Electronics Co., Ltd, is a professional lithium manufacturein China. We are a high-tech and new energy enterprise , developing, designing and producing Lithium battery cells and battery packs, including NMC and LiFePO4 battery.

Enerbyte battery products cover lithium power batteries, energy storage batteries and consumer electronic batteries. Our products are widely applied in electric vehicles, power tools, medical equipment, solar/wind energy storage, backup battery bank, emergency and security equipment, Handel terminals, military equipment, communication systems and many other fields.

We have more than 8 years of experience in exporting Lithium batteries, distributed to USA, Canada, Italy, United Kingdom, Germany, Australia, France, Thailand, South Korea and many other countries and regions.

Enerbyte possesses strict quality control system, professional team and after-sales services, we have get following certificate: ISO:9001, CE, MSDS, ROHS, UN38.3 and all products are insured by CIPC.
We also provide OEM services and welcome you to be our new partner!
