Detailed Description
Quick Details
Power:Electric
Place of Origin:Jiangsu, China (Mainland)
Brand Name:Eagle
Model Number:EG6158K
Controller:Curtis brand
Motor Power:5KW DC
Charger:72V Smart transformed Charger
Range (loaded) (km)*:Up to 105
Battery:Trojan brand
Brake system:4-wheel hydraulic brake +hand brake
Wheel:4J*12 steel rim,
Overall dimensions (mm):5000
x1490x2050
Tyre:145/80-R12 6PR tyre, with wheel cover
Des
cription:Electric Shuttle Bus
Packaging &Delivery
Packaging Details: | SKD in asteel rack 2units in 20'ft container 4units in 40'ft container 4unis in 40'HQ container |
|---|
| Delivery Detail: | 3 -4 weeks |
|---|
Mini electric train
Right Hand Drive Electric Shuttle Bus is ready for releasing to the market now!Make drive more easy and more co
nvenient in the countries wher
e RHD car is used!
Inheriting the characteristic of our standard LHD electric shuttle bus,RHD electric shuttle bus is also your ideal vehicle in enclosed area such as park, resort, garden, museum, village, hotel, airport, community, big factory, pedestrian street, etc..
All 8seater, 11 seater and 14 seater shuttle are available for RHD.For other details, please refer to LHD shuttle bus.
Product Des
cription
Battery | Deep cycle, lead acid battery, Trojan brand, imported |
| Motor Power | 5KW DC |
| Controller | Curtis brand, Separated/Series excited, imported |
| Passenger capacity | 14 |
| Range (loaded) based on flat road at aspeed of 20km/h (km) | >80 and 100 when it's without gear box |
| Max.Speed(km/h) | 45 |
| Minimum turning radius (m) | 5.35 |
| Max.Climbing ability | 20% |
| Max.Lifting weight | 1120kgs |
| Overall dimensions (mm) | 5000x1490x2050 |
| Ground Clearance (mm) | 135 |
| Body and frame | |
| frame | Welded steel framework with sand blasting+paint treatment |
| Body | FRP |
| Windshield | Laminated |
| Large Seats: | Sponge +artificial leather, aluminum armrest |
| Floor | Bamboo board+ rubber |
| Electric system | |
| Lighting system and horn | Front:2 Headlights (High beam and dipped headlight), 2front turn signals, 2fog lights;Back:2 rear turn signals, 2taillights(position light &brake light), 1fog light, 1reverse light),with DC-DC converter (converting from 48V to 12V) ,horn. |
| Dashboard meter | Current meter,voltage meter, speedometer |
| Charger | Input 110V-240V~50Hz-60Hz, output 72V/48V, 25A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake +hand brake |
| Transmission system | Clutch, 4F+1R gear box, transmission shaft |
| Front Suspension system | Independent suspension, cylinder hydraulic vibration absorber |
| Rear Suspension system | Integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Wheel &Tyre | 4J*12 steel rim, 145/80-R12 6PR tyre, with wheel cover |
| Color | |
| Body Color | Pure white/Pure Black /Pearl Red/Sapphire Blue/Greece Yellow/Lake Green |
| Seat Color | White and Tan |
| Others | |
| Provides various options like:Seatbelt, solar panel, enclosure, Overshadowing Curtain, aluminum rim, CD player, etc.. |

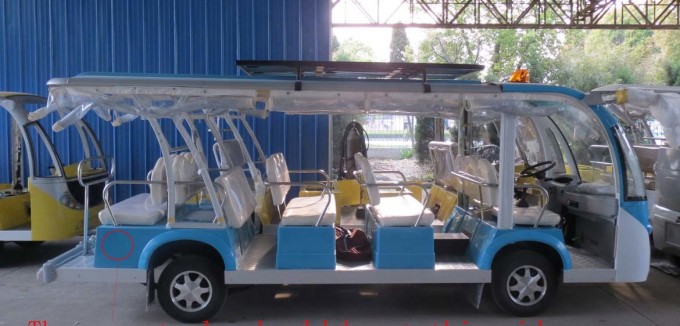

Product Image
