29seater Electric Bus Train Rsg-128A

29Seater Electric Bus Train RSG-128A



RSD-429A comes out due to needs from our clients, they are looking for a sightseeing bus but can carry more passengers, normally sightseeing bus can carry at most 14 persons.
So this electric trailer sightseeing bus was born, while main spec is the same as normal sightseeing bus .

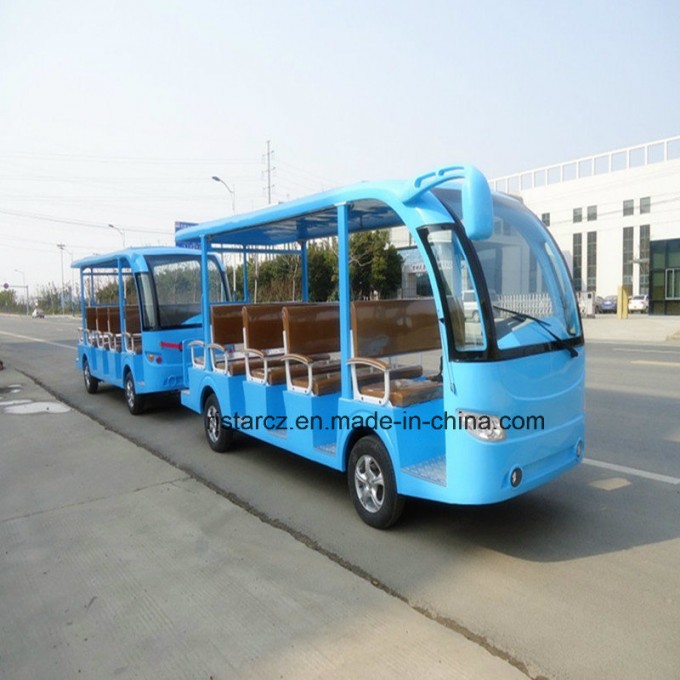

As you can see, it is made from 2 units 14 seats sightseeing bus, the front model worked as a tractor or locomotive, the rear one as trailler or wagon, while wagon don't have steering wheel but still nearly the same with front one.

Rear wagon doesn't need power output, so we didn't assemble power system. Also no separate brake system. We use a special brake while the front locomotive brake the rear one will brake too.

Depends on mileage required, this model can be assembled with single 72V system or double 48V system, 72 system.

Depends on climbing needs, can choose motors starting from 5kw to 6.3 kw or AC series.

Options:
1. big power motor like 7.5kw, 10KW etc
2.battery like Trojan brand
3.LED lights decorations, see pic below

4.electric power steering
.....

This sightseeing trailer bus is very suitable for theme parks, gardens, resorts, airport etc

Main standard spec as below

Performance Passenger capacity 29 persons Max. speed 30km/h Range(loaded) After fully charged more than 80km Climbing ability(loaded) 15% Braking distance ≤5m Min.turning radius 4.5m Min.clearance 140mm Recharge time 8~10h Dimensions per car L×W×H 4815mm*1500mm*2130mm Wheel distance 1200mm Axle Distance 2780mm Curb Weight 1320kg Max. loading 1200kg

Loading and packing


We are willing to develop and design electric vehicles for your needs.
