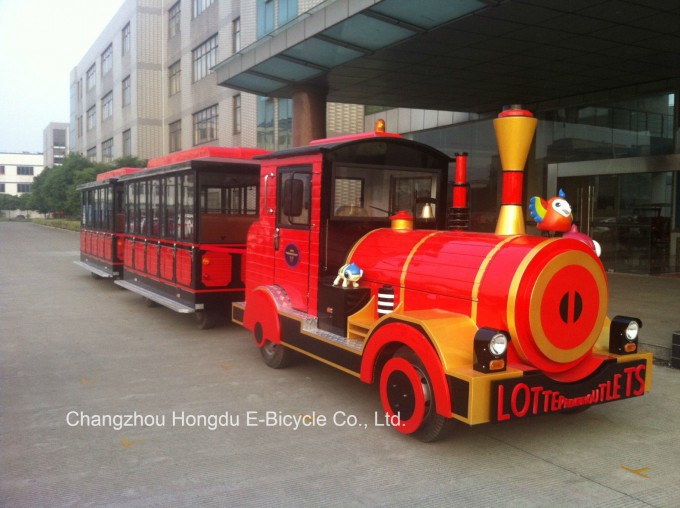

Theme Park Electric Mini Train for Sightseeing

hot model amusement electric trackless train
Main car dimensions, 4100mm*1860mm*2420mm
Carriage size, 4434mm*1800mm*2300mm
Unloading weight for main car, 2800kgs
Unloading weight for carriage, 2000kgs
Min. Ground clearance, 150mm
Max. Speed(loaded), 30km/h
Max. Distance range, at least 80km
Max. Climbing ability(loaded), 5%
Wheel base, 3000mm
Wheel tread, 1400mm
Min. Turning radius, 6.5m
Passenger capacity, 20 persons for one carriage
Battery, Lith-ion battery with BMS system
Charger, 80V
Controller, 80V 600A
Motor, 80V/ 12KW DC series excitation
Lighting system and horn2 combined front lights(headlight, turning light, position light), 2 front fog lights, 2 taillight(turn signals and brake lights), horn, rear buzzer, inner lights on each carriage
Dashboard meter, voltammeter, ammeter, odometer, speedometer, emergency switch; Combined switch, meter indicator
Audio System, radio and MP3 adaptor, with 2 speaker
Wiper, single arm
Transmission system, rear engine Rear wheel drive(RR) in main car
Steering system, gear type steering machine
Front axle and suspension, non independent suspension
Rear axle and suspension, integral type rear axle, leaf spring independent suspension
Braking system, air brake governor
Wheel & tyre, aluminum rim, tubeless tyre 185/14
frame, high quality carbon pipe welding rust frame
Body, steel and fiber glass
Windshield, laminated
Side rear view mirror, each on both sides
Seats, senior fabric leather + higher rebound PU
LED light there is a cycle LED light at the bottom of main car and carriage
LCD screen, each carriage has a LCD screen like bus
Steering wheel, PU foaming steering wheel
DecorationS, golden bell etc.
Floor, Anti-sliding Aluminum floor mat
Interior lights, each carriage has three interior lights
Logo, can make logo according to your requests
Color, can make color according to your requests

Details showing


Other info



For more detailed info, welcome to enquiry us.
