Golden Motor Electric Bike Conversion Kit 24V/36V/48V500W1000W

24v/36v/48v500w1000wGolden Motor electric bike conversion kit,programmable !


Golden Motor magic pie electric bike conversion kit content :

1. Magic pie /SmartPie4 motorized wheel (hub motor mounted in the rim)
2. Sine wave controller (built-in-motor)
3. Throttle with LED battery gauge (thumb or twist)
4. Brake levers (to cut off power and activate regenerative braking)
5. Control switch (cruise, horn, etc)
6. Wires and plugs (all necessary to install kit on your bike)
7. Optional USB programming cable (program the controller on PC)


electric bike hub motor Specification :

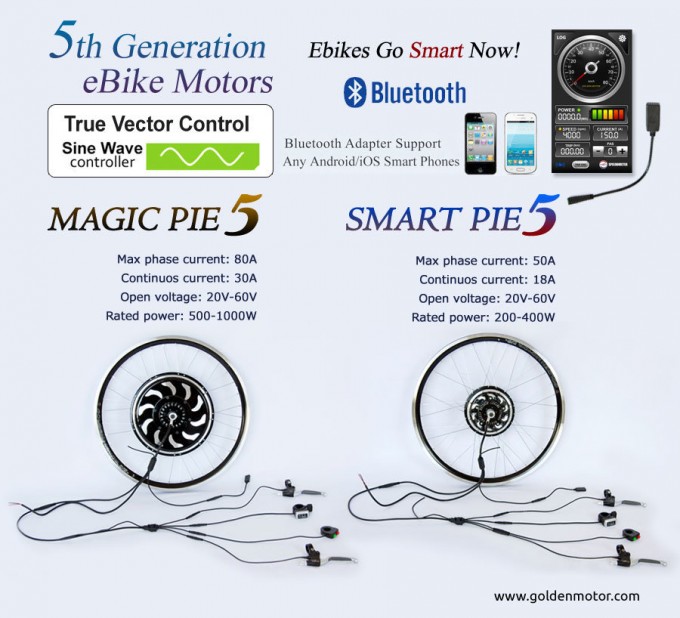

MagicPie5motor:
Maxphasecurrent:80A
Continuouscurrent:30A
Openvoltage:20-60V
Ratedpower:500-1000W

Motor wheel Keyfeatures:
1.Bluetoothwirelessconnection!!
2.UpgradedGMSpeedometerdisplayonCellPhone/(FREEsoftware)
3.UpgradedSineWavecontrollerwithtruevectorcontrol.HighestReliablity!
4.ParameterProgramable
5HigherTorque&HigherEfficiency
6.Lowernoisy
7.TruetemperaturesensorinsdeandLoweroverheating
8.Regenerativebraking
9.Suport6/7-speedthreadfreewheel

·Brushless gearless motor:gearless means direct drive, quiet, high efficiency, long working life, maintenance free.
·Built-in sine-wave controller:smooth riding control, no messy exposed wirings, easy to install, neat looking bikes.
·Strong torque:acheived by stronger magnets, thinner 0.35mm stacked lamination, innovative motor design, high capacity MOSFETs.
·Open voltages 24/36/48Vdc:user adjustable power and speed, self upgradable from 24V to 36V or 48V to meet local regulations.
·Built-in cooling fan:effective heat dissipating, better performance for motor and controller, higher climbing capability.
·Programmable controller:control parameters programming via USB cable, customizable for different EV applications.

·e-Bike Conversion Kits:
·The kit includes motorized wheel,built-in controller,speed throttle, power break lever, wire harness
·Travel ranges: 30-60 km
·Speed: 0-45kpm
·Suitable bike frame: 100mm front fork,or 135mm rear fork drop-out
·Box Dimensions (Front Wheel Kit): 66cm X 66cm X 19cm, Kit Gross Weight: 11Kg
·Box Dimensions (Rear Wheel Kit): 66cm X 66cm X 22cm, Kit Gross Weight: 11.5Kg
