Agile 250W LCD Bike Engine Hub Motor Kit with Geared Motor

Agile 250W LCD Bike Engine Hub Motor Kit with Geared Motor

Why need electric bike kit to convert into an e-bike?
1. low-carbon solution, saving your time and effort.
2. Stay the original look & style of your favorite bike
3. Occupy less space, more flexible than a car. Cover the last few miles which a car can't
4. Riding an electric bike to get some fresh air may make you feel better than driving a car.

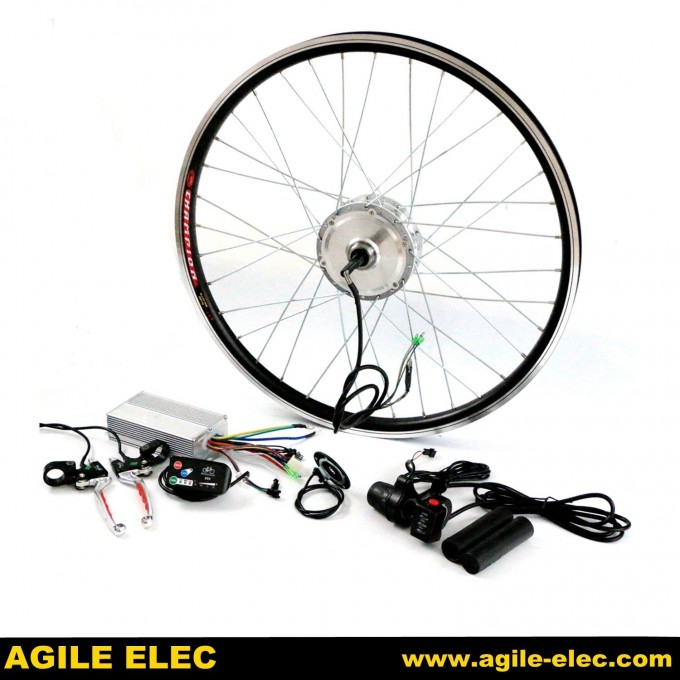

This Kit Includes:
1. 36V 250W Brushless direct drive hub motor
2. 36V 15A intelligent controller
4. High power aluminium alloy rim 16inch - 28inch
5. Thumb throttle or twist throttle
6. 2 alloy WUXING brake levers
7. 1:1 pedal assist sensor
8. Hand grip
9. Cable ties
10. LCD Display
11. Instruction manual


Specifications:

Rated Power	250W
Nominal Voltage	36V
Position	Front Motor/Rear Motor
RPM	100-380
Max Torque	15N.m
Efficiency	83%
Axle	100mm(Front)/135mm(Rear)
Hall Sensor	With
Display	LCD Display

FAQ:

• QWhat kind of brand do you use for controller and display?
• A KT, Sciencewell, and Xi-tong. Both controller and display for one set. Other brands are optional.

• Qwhat kind of brand do you use for cell box, cell, power-off brake?
• ACell box: ShanShan and Huiye
Cell(18650): Local, Samsung,Panasonic, LG,etc.
Power-off brake: Wuxing
Other brands are optional.

• Q The controller uses square wave or sine wave?
• A It is optional.

• QThe electric bike conversion kit uses gear motor or gearless motor?
• AIt is optional.

• QThe controller uses square wave or sine wave?
• AIt is optional.

• QWhat is the largest power of your motor for the kit?
• A5000w

• Q Will the electric bike conversion kit fit my bicycle?
• A The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork (the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.

• QDoes the electric bike conversion kit waterproof?
• AYes. You can ride our electric bikes in the light rain without worrying about damaging the elements
