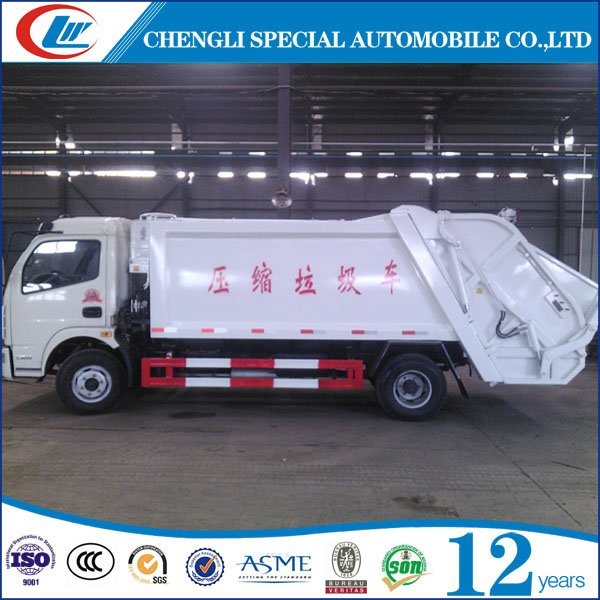

Small Good Use 5000L Compactor Garbage Truck for sale
Thecompssed garbagetruckusually calledgarbage compactor truck,compssion garbage truck,waste compactor truck,compactor garbage truck,etc.
Thecompss garbage truckusually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compss it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pssure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
Below specification is just for your reference. More information of ourGarbage Trucks, please feel free to co
ntact withMs. Nancy Wang. We will customize the truck according to your requirement.
Sales Manager: Nancy Wang
Mob.: 0086-18186127295 0086-13872880251
| Product Technical Specifications |
| Item | Descriptions | Spesifications and Types |
| Vehicle | Brand | CHENGLI |
| Model | CLW5060ZLJ |
| Overall Dimensions L*W*H | 5470mm×1900mm×2200mm |
| Weights | GVW. | 6,495kgs |
| Curb Weight | 3,350kgs |
| Rated Payload | 3950kgs |
| Chassis | Brand | Dongfeng |
| Model | EQ1060TJ20D3 |
| Drive Type | 4×2 |
| Steering | LHD, power assisted steering |
| Engine | Brand | Chaoyang |
| Model | CY4102-C3F |
| Power | 70kw/95HP |
| Displacement | 3856ml |
| Emmission Standard | EURO 3 |
| System | Direct injection, turbocharged inter-cooled, electronically controlled VE pump, water cooled EGR |
| Performance | Max. Speed | 80km/h |
| Min. Ground Clearance | 175MM |
| Max. gradeability | 30% |
| Wheel base | 3300MM |
| Tyre Specifications | 7.00-16 |
| No. of Tyre | 7pcs (1 spare tyre included) |
| Axle Capacity | Front 4Tons & rear 8Tons |
| Transmission | 5 forward gears & 1 reverse, Manual |
| Brake | Air brake, drum brake |
| Suspension | Leaf spring |
| Fuel Tank Capacity | 55L |
| Electics | 24V |
| Cab | Cab Capacity | 2 persons allowed |
| Cab Type | Single row Cab |
Body/
Superstructure | Box | Capacity | 4.4m³ |
| Material | 3-4mm high quality carbon steel |
Basic
Equipments | The vehicle with the dump function,hydraulic operation ,easy to dump,left and right sides of each have 1-2 rubbish into hole, garbage cover manully shut down,the bake can be a dump,Internal adopt epoxy anticorrosive processing. |
|
|
| Paint | Rust proofing primer + undercoat +2 finish coats = 4;
Tank color is according to client's requirements. |
| Optional Equipments | Air Conditioner |
| Stainless steel |
| 5mm carbon steel |
| The truck is fully enclosed,not open. |
a
bout USWe CLW HeavyIndustryCo.,Ltdare a professio
nalmanufacturerand exporter which is co
ncerned with the design, development and production of more than300kinds of trucks, semi-trailers, and storage tanks.
All of our products comply can reach theinternatio
nal quality standardsand are greatly appciated in a variety of markets around the world.
1.CLW HeavyIndustryCo.,Ltd which was appointed bythe Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & enviro
nmental construction, petrol & medicals, container, and semi-trailer. Nearly15yearswholesalerexperiencein producingtruck.
2.Our company hasindependent export rightand has amount of clients overseas includingAfrica, North America, Middle East, Australiaand so on. The exportturnoverhas reached25million dollars.
3.Our company hasgood after-sales service,solid technology,flawless inspectio
nfor our dear customers.
Our Dear Customers
CLW HeavyIndustryCo.,Ltdalsoprovideproductsasfollows:
1.LPGTankTruckTrailer/FuelTankerTruck
2.Watertruck/WaterTankTruck/WaterSprinklerTruck/WaterTanker
3.Truckwithcrane/Truckmountedcrane
4.DumpTruck/TipperTruck/SideTipper/EndTipper
5.FireFightingTruck/FireTruck/FireVehicle
6.ConcreteMixerTruck
7.Vantruck/Blastingequipmenttransporter/Refrigeratedtruck
8.Fecalsuctiontruck/Sewagesuctiontruck
9.CementPowderTanktruck/Bulkcementtruck
10.High-altitudeoperationtruck
11.Selfloadinggarbagetruck,garbagecompactortruck,sealedgarbagetruck
12.Tractor
13.HighPressureCleaningTruck
14.SweeperTruck
15.SemiTrailer(flatbedtrailer/skeletontrailer/dumpsemitrailer/sidewalltrailer/lowbedtrailer/vancontainertrailer/warehousetrailer,etc.)
FAQ
1. Q: What certifacte do you have for trucks of your factory?
A: Our trucks getISO 9001:2008 and CCC, B&Vand other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.
2. Q:How many years of your company's service, especially after-sale service?
A:CLW HeavyIndustryCo.,Ltdhas been in this field fornearly 15 yearsand has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.
3. Q:Is there any advantages of your price?
A:CLW HeavyIndustryCo.,Ltdis one of the most im
portant suppliers ofSinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reaso
nable price and good quality.
4. Price term:FOB, CIF.
5. Payment:30% deposit after order /con
firm/iation, 70% balance should be paid before delivery. All are byT/T, L/C.
6. Delivery time:25 working daysafter payment is received.
7. Standard Steering:Left-hand drive,if you need Right-hand drives, please informus, will make special order for you.
Any question please contact me without hesitation!!!CLW HeavyIndustryCo.,Ltd
Internatio
nal Trade Center
Co
ntact person:Nancy Wang
Cel: +86-13872880251
+86-18186127295
Fax:+86-27-83796298
Website: www.clwvehicle.com
