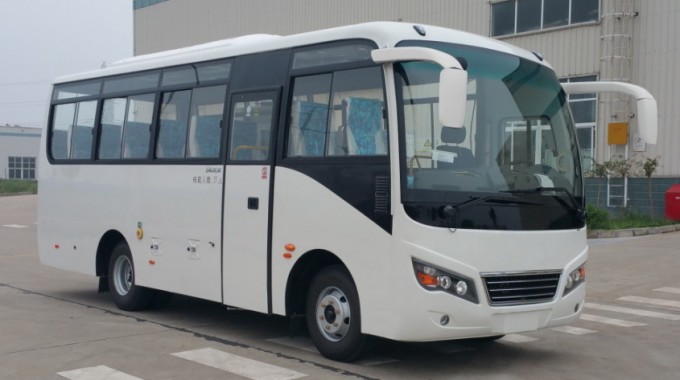

| bus specification | exterior dimension(mm)L/W/H | 7510*2360*2960(3170) | engine | type | ISDE140-30 |
| wheelbase(mm) | 3800 | company | Dong Feng Cummins |
| overhang F/R(mm) | 1250/2460 | form | in-line, 4 cinlyders |
| approach/departure(°) | 17/11 | Max. power(kw/ rmp) | 103/2500 |
| F/R track(MM) | 1830/1628 | Max. Torque (N.M/ rpm) | 450 /1400 |
| G.V.W(kg) | 8000 | displacement(L) | 4.5 |
| rated passenger capacity | 29+1 (maximun could be 32 seats) | fuel type | diesel |
| Max. speed(km/h) | 100 | emission standard | Euro 3 (Euro 2/ 4 available) |
| | | | | |
| items | standard equipment |
| gearbox | 5 speed gearbox (ZF techonology) (R25/134), QJ605 |
| clutch | single, dry diaphragm spring,¢395 ,Raybesto material clutch disc |
| front axle | Dong Feng Dana axle, capacity of 3T,forged steel, Itype section,two-ended boxing |
| rear axle | Dong Feng Dana Axle, capacity of 5.5T, full floating axle shaft, single reduction, hyperbolic gear |
| frame | Straight beam |
| brake system | Independent double circuit air brake |
| suspension | leaf spring 9/11,pneumatic brake. |
| steering system | circulated ball type , power steering |
| fuel tank capacity (L) | 135L |
| tyre | 8.25-16, 6+1 with spare tyre, with tyre lifter |
