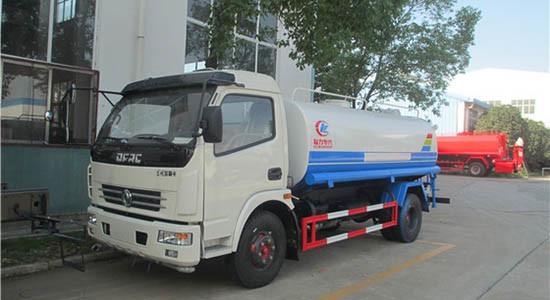

Small Water Carrying Truck, 5ton 5cbm 5000liters 6 Wheels Water Tank Truck, Mini Water Truck for Sale
2015 hot sale 4*2 15 cbm dongfeng water tank truck
1. Tank material: Q235AClWHeavyIndustryCo.,Ltdis specilized in All kinds of Tank truck, Dump truck, Crane truck,mixer truck,bulk cement truck as well as many kinds of semi trailers. Our yearly production ability is 20000 units, our water truck ranks No.1 in China market.
Water truck,isalsocalledasthesprinkler,wateringcart,water tank truck,water spray truck,water sprinkler truck,water tanker truckandmulti-functiongreenwateringtruck.
ChengLispecialautomobileco.,LTDFactorySupply
a.specialtruckmanufacturersinSuizhoucity,HuBeiprovince,china.
b.morethan100kindsofspecialtruckforyourneeding.suchasgarbagetruck,LPGtruck,fueltruck,watertruck,highplatformtruck,dumptruck,concretemixertruck,truckmountedcrane,chemicaltanktruck,firefightingtruck,bulkcementtruck,flatbedtrailers,lowbedtrailer,cargotrailertippertrailer,fueltrailer,LPGtrailerandmore.
c.Nearly20yearsWholesalerexperienceinproducetruckandtruckpartsfield
Conact Information
Name:Albert Du
Tel/Fax:00862783796298
Mobile:008613872880263 and008618660874450
Technique Parameters
Model | JMCSmall Water Carrying Truck, 5ton 5cbm 5000liters 6 Wheels Water Tank Truck, Mini Water Truck for Sale | ||
Vehicle Main Dimensions | (L x W x H)mm | 5990x2290x2400 | |
Wheel base (mm) | 3300 | ||
Wheel track (front/rear) (mm) | 1180/1910 | ||
Approach/Departure angle(°) | 22/12 | ||
Weight in KGS | Tare Weight | 4400 | |
Loading Capacity | 4600 | ||
Max. driving speed(km/h) | 95 | ||
Engine | Brand | Dongfeng or JMC | |
Model | CY4100 | ||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 95HP | ||
Emission standard | EuroIII | ||
Gearbox | 5 forwards& 1 reverse. | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm. | ||
Tire | 8.25-16 All steel radial tire, 1pc including 1 spare tire | ||
Brakes | Service brake: dual circuit compssed air brakeParking brake:(emergency brake): spring energy, compssed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | power steering, hydraulic steering with power assistance | ||
Tanker Body | |||
Volume | 4 6 7 8 CBM | ||
Material | Q235/Q345/610L/Q700 Carbon steel, Stainless steel, Alloy steel | ||
Manholes | 1 | ||
Thickness | 4mm5mm 6mm | ||
Optional | Pump, Bottom Vavle, Flow Meter | ||
Factory Scene
Other kind of truck manufactured by chengli
Chengli Watering Truck Products Features
Water trucks should have the right tool for the right job. Below are some of CLW's most sought after options.
1. The material of water tank used by high quality carbon steel, equipped with the high power water pump which named CLW(technology from Japan), it has owned the no.1 title in the assessment of quality in China.Suction lift>8m, Width>14m, Range>35m.
2. Equipped with fire valve, water valve. Equipped with suction pump. It can suction the water from the pond to tanker directly, it can injection from the fire hydrant to the tanker at the city streets directly also.
3. The water truck can used as thechemical spraying truckto use, it based on users requests to do professional chemical spraying antiseptic, also can used as a water delivery truck by the unit or company in urgent case, it can also used as a fire truck.Factory make top design water carrying truck 10ton 10cbm 15000liters 6 wheels water tank truck cummins engine water truck for sale
4.Custom Rear Spray
Factory make top design water carrying truck 10ton 10cbm 15000liters 6 wheels water tank truck cummins engine water truck for sale
Welcome to visit our factory and place your order!!!
