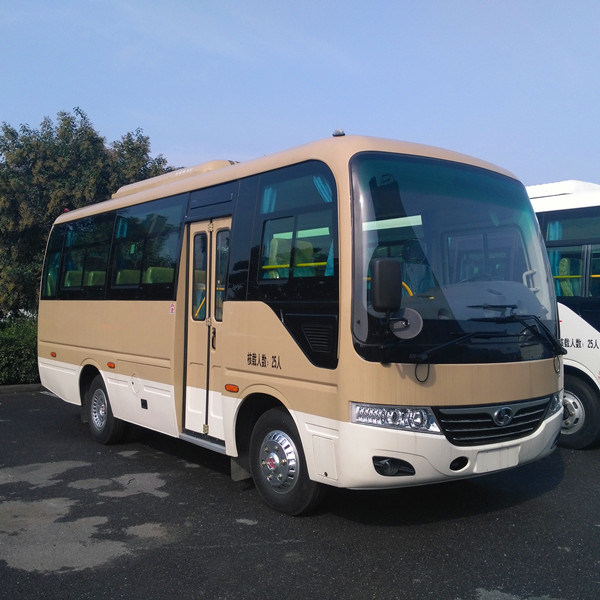

High Quality Coaster Bus with 25 Seats

High Quality Coaster Bus with 25 Seats

Features
1) From creative design to manufacture, we always keep the art and practice together.
2) Driver's compartment, high adjustable seat, hide AC outlet, etc. Show humanity design everywhere.
3) Fashionable and luxury vehicle performance simulation system ensure the vehicle's superior performance and low energy.
4) The design of body broaden, makes your travel more comfortable.

Specification

ITEM
DIMENSION	LENGTH*WIDTH*HEIGHT(MM)	6620×2240×2820
	Tread F (MM)	1750
	Tread R (MM)	1586
	WHEELbase (MM)	3300
WEIGHT	TOTAL MASS (KG)	5700
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	11
	MAX. SPEED (KM/H)	100
	ANGLE (APP/DEP)	13/10
Max SEATS CAPACITY		26seats
frameWORK		STRAIGHT BEAM
ENGINE	MODEL	EURO2 YC4F115-20
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	85KW
	MAX. TORQUE (N.M)	300
	EMISSION STANDARD	EURO 2
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
	CLUTCH BOOST	WITH PUMP
TRANSMISSION	Gearbox	5 SPEED- MANUAL
	ConTROL SYSTEMS	FLEXIBLE SHAFT
FRONT AXLE		2.3T
REAR AXLE		5T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	Ф310
	F/R BRAKING SHOE Width	120/150
SUSPENSION STYLE		MULTIPLE-LEAF SPRING
TYRE		7.00-16
OIL TANK CAPACITY		90L



Company Introduction

We are one of the major bus manufacturers in China which is certified by Chinese Ministry of Industry and Information Technology(MIIT).

Established in 1983, with 3 decades of development, it is now a powerful enterprise with 3,000 employees and 4 assembly factories. We are capable of producing 20,000 buses every year.

We produce different types of coaches, buses, city buses, cargo van, school buses and bus chassis. The products we export have gained the certification of CCC and ISO9001. We have customers from all over the world.

Adhere to the value of "CUSTOMERS BEING SUPREME, SERVICE BEING ENDLESS", we will spare no efforts to dedicate ourselves to meet the satisfaction and benefit of our customers. The best quality products and the strongest are always guaranteed to all of our clients and business partners.

Below is my contact information. I am looking forward to your inquiry at any time.
