6m Passenger Bus with 22 Seats

6m Passenger Bus with 22 Seats

Product Specification

TECHNICAL SPECIFICATION
Overall Dimensions
Length (mm)	6000
Width (mm)	2240
Height (mm)	2950(withA/C)
Interior height (mm)	1900
Wheel base (mm)	3300
Front/Rear Overhang (mm)	1750/1586
Min. Ground clearance(mm)	200
Approach/Departure Angle(o)	11/13
Vehicle structure	Half loaded
Brake distance (v=30km/h)	≤10
Kerb weight (kg)	4150
Front /Rear Axle (kg)	2300/5000
Max. Total Mass(kg)	5700
Max. Speed (km/h)	125
Max. Grade ability (%)	30
Min. turning diameter (m)	10
Fuel Tank Capacity (L)	90
Luggage compartment(m3)	3.5
Engine
Arrangement of Engine	water cooling, charged air coolant, turbo charged
Model	YUCHAI ENGINE YC4D120-20
Displacement (cc)	4214
Position	Front mounted
Max. Output (kw/rpm)	90/2300
Max. Torque (N.m/rpm)	350/1500~1600
Type of Fuel	Diesel
Emission Standard	Euro II
Chassis
Anti-corrosion system	Full chassis with Electrophoresis Coating
Clutch	Strong quality and advanced durable clutch
Gearbox	5 Speed Manual
Suspension system	spring suspension
Steering system	Integral power steering
Braking system	Dual-circuit air braking Air release parking
Tire	7.00-16 Tire
Electric system	24v Single wire, Minus earth
Starter	24V, electromagnetic operation
Battery/Alternator	2pcs/150A alternators
Body
Body structure	Semi-integral body Pre-stress stretched panel skin Full metal body
Anti-corrosion system	Full body with Electrophoresis Coating
Inner trimming	Integral A/C channel Deluxe inside luggage rack
Door and door pump	FIXED door
Windows	Upper fix and lower sliding window
Roof hatch	one
Seat	22 persons,
Air-conditioning system	OPTIONAL
Defrosting system	Natural wind defrosting system
Audio and Visual system	MP3 USB RADIO
Rear view system	Luxury Rabbit ear rear view mirror
Lamp	Integral head lamp LED tail lamp LED LED interior lamp
Drive recorder	No
Others	Tool box Emergency hammers Fire extinguishers

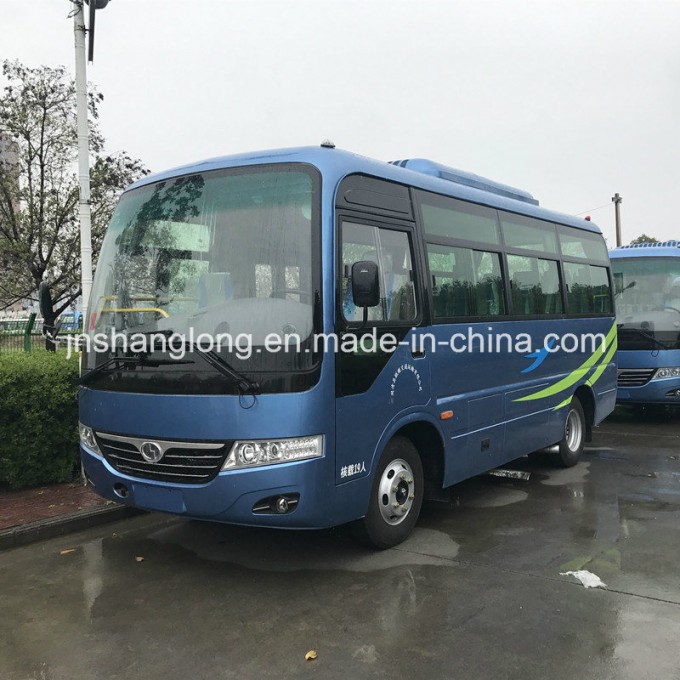

Product Photo






Company Introduction

We are one of the major bus manufacturers in China which is certified by Chinese Ministry of Industry and Information Technology(MIIT).

Established in 1983, with more than 3 decades of development, it is now a powerful enterprise with 3,000 employees and 4 assembly factories. We are capable of producing 20,000 buses every year.

We produce different types of coaches, buses, city buses, cargo van, school buses and bus chassis. The products we export have gained the certification of CCC and ISO9001. Our customers and business partners are worldwide.

Adhere to the value of "CUSTOMERS BEING SUPREME, SERVICE BEING ENDLESS", we will spare no efforts to dedicate ourselves to meet the satisfaction and benefit of our customers. The best quality products and the strongest support are always guaranteed to all of our clients and business partners.
