China Water Tank Truck 2m3-30m3 Sprinkling Truck

China Water Tank Truck 2m3-30m3 Sprinkling Truck

Parameter of water truck

Descriptions & Specifications

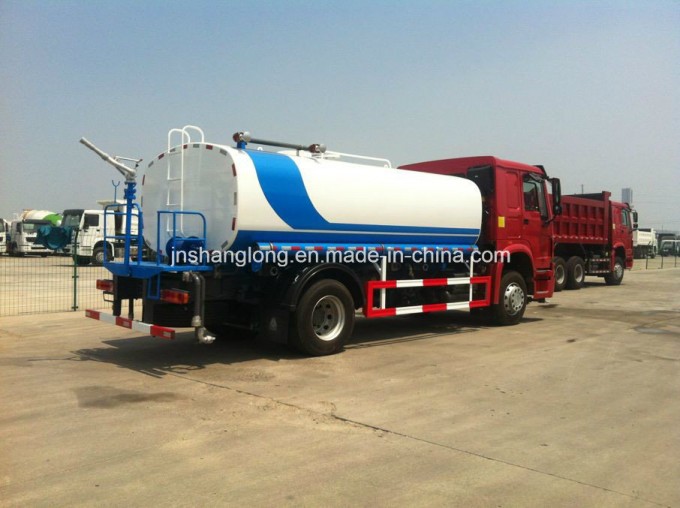

HOWO 4x2 Water Truck ZZ1167M4611W, LHD;

Engine: CNHTC brand WD615.62, 266hp, Euro 2 emission;

Vehicle dimension: 8270x2496x2958mm

Tank size: 4800x1988x1360mm

Tank volume: 12.5 m3

Tank material: Carbon structural steel Q235

Tanker thickness: 4 mm

Total weight : 15990 kg

Rated load weight: 6680kg

Wheel base: 4600mm

Water pump Model: 80QSB-60/90

Flow quantity: 60 m3/h

Lift: 90 m

Self - Priming Lift: 6 m

Operating speed: 5~10km/h

Sprinkler width: ≥14~18m

Spray gun vertical range: ≥26m

Cab: long cab with two seats and one sleeper

Rim/Tyres: 295/80R22.5 tubeless tyre;

3.Standard configuration: four nozzles(front/rear); one Anti-aircraft gun; two pssure drains; two gravity drainages; one self-priming water gap; two since the suction pipe(3meters)

Some optional configuration:

1). spray water forward;
There are two duck bill sprinklers on both sides of the front;
Can be adjusted up and down, left, right, is mainly carried out on the road erosion;
Thewidth ois about 5-10 meters

2). spray water backward;
There are two cylindrical sprinklers areon both sides of truckback;
Slot nozzle Angle with the ground into 15 degrees or so;
Itsmainlyfunction is spraying water on road surface and reduce the dust;
Coverswidth is about14-18 meters

3). pssure drain:
Pressure discharge opening on both sides of tank, the nozzle is usually 65 mm quick assembling clasp, conveying hose coupling and rapid convergence;
Its function is watering thevegetation that thevehicle can't reach or transmitted water over a long distance.

4). water cannons:
Handheld anti-aircraft gun is on work station or tanks, can turn 360 degrees;
Itsmainlyfunction issprayingtall tree , emergency fire, strong erosion andwateringgreen space;
Can make the jet of water pillars or fog by adjusting the nozzle;
A range of 30-40 meters.
5).Fire water monitor:
6). anti-dust: (Can be used for drug injection)
Inhibition of air suspended particles, eliminate the smog;
Strong power, large air volume,farrange and wide coverage,smallfog particles

7). Shower head:
Spray tender plants such as seedlings and flowers;
Neither broken to soil surface or harm the seedlings
8). Elevating work platform:
Can be used for high altitude pruning, street lamp installation, maintenance, etc
9).Warning lights:
platoon lights; globe lamp; LED arrow.
