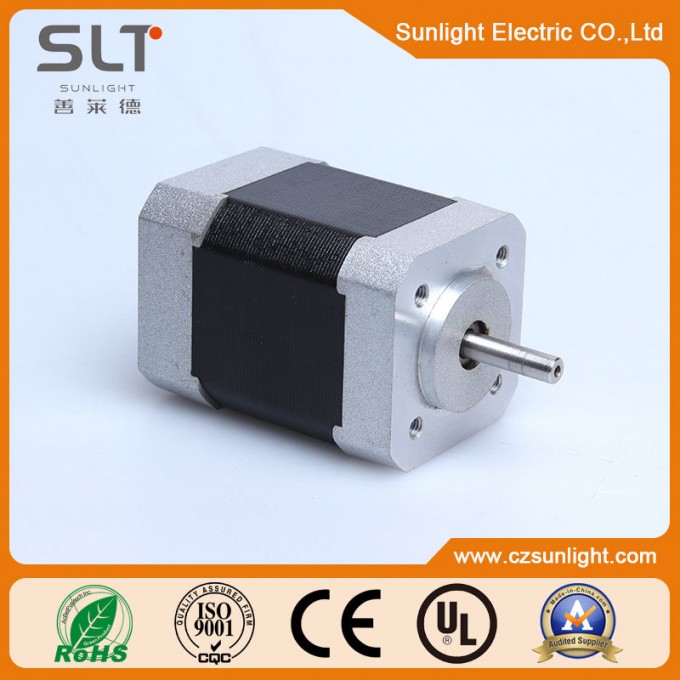

China Supplier 36V High Torque Brushless Auto Part for Bus

1,Voltage:6V-36V
2,No load speed:1000-10000 r/min
3,Rated torque:0.01-0.8Nm
4,Rated speed:3000-8000r/min
5,Rated current:0.5A-20A
6,Environment conditions:-10-40ºC
7,Magnet material:Bonded NdFeB
8,Insulation Class:B
9,OEM and ODM are available for us.


Advantages of BLDC motor
a.High-voltage driving to reduce transfer loses
b.Sensor-less phase detected
c.Sine-wave control. Low phase switching noise
d.Support both of linear and digital (PWM) control signal input
e.High efficiency for power saving
f.Permanent magnet rotor
g.No induced electric current on rotor- no heat generation
h.Steppless change of fan speed
i.Lower power consumption
j.More consistent output level
k.Reduce power losses
l.Higher efficiency than AC motors

Model			62SLT01	62SLT02	62SLT03
Voltage		V	36
No load speed		rpm	3900	3700	3700
Rated torque		Nm	0.22	0.4	0.65
Rated speed		rpm	3200	3000	3000
Rated current		A	4.5	7.1	12.7
Torque(max)		Nm	0.66	1.1	1.8
At Torque (max )Current		A	11.5	17.8	32
Rotor inertia		Kgmm²	19	37.5	55.8
Black-EMFconstant		V/krpm	4.3	4.6	4.53
Torque Constant		Nm/A	0.062	0.065	0.061
Resistance(20ºC)		ohm	0.57	0.24	0.13
Weight		Kg	0.9	1.3	1.8
L1		mm	64	84	104
Rotor:La		mm	20	40	60

Model	No load speed(rpm)	Rated torque(Nm)	Rated speed(rpm)	Rated current(A)	Torque(max)(Nm)	Rotor inertia(Kgmm²)	Black-EMFconstant(V/krpm)	Torque Constant(Nm/A)	Resistance(20ºC)(ohm)	Weight (Kg)	Rotor:La(mm)
SLT42BL01	5000	0.063	4000	1.65	0.189	5.2	3.17	0.045	1.42	0.29	20
SLT42BL02	5000	0.125	4000	3.4	0.375	9.3	3.13	0.044	0.73	0.47	40
SLT42BL03	5000	0.185	4000	4.5	0.5	13.4	3.28	0.73	0.39	0.65	60
SLT60BL01	5200	0.11	4000	1.9	0.3	7.5	4.5	0.074	1.65	0.5	20
SLT60BL02	5200	0.22	4000	3.3	0.55	11.9	4.82	0.079	0.7	0.5	40
SLT60BL03	5200	0.32	4000	4.8	0.8	17.3	4.87	0.08	0.48	1	60
SLT60BL04	5200	0.44	4000	6.6	1.05	21	4.87	0.08	0.35	1	80
SLT62BL01	3900	0.22	3200	4.5	0.66	19	4.3	0.062	0.57	0.9	20
SLT62BL02	3700	0.4	3000	7.1	1.1	37.5	4.6	0.065	0.24	1.3	40
SLT62BL03	3700	0.65	3000	12.7	1.8	55.8	4.53	0.061	0.13	1.8	60

Application
A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B:Home Appliance ( Electric cooker, Electric mop and other products.)
C:Medical equipment and beauty products.
D:Office products (such as printer, scanner......)
E:Electric tools and garden tools.
