Detailed Description
China 9.3 meters Passenger Van with 45 seaters-48 seats
Detailed infromation
| Dimension | LXWXH (mm) | 9340x2450X3480 |
| Seat Capacity | 44+1 seats |
| framework | Straight Beam |
| Engine | Model | Cummins EQB210-20 |
| Type | 4 Cylinder In-Line |
| Rated-Power (kw/r/min) | 155kw |
| Max. Torque (N.M) | 600/600/600 |
| Emission Standard | Euro 2 |
| Fuel Type | Diesel |
| Clutch | Type | Single Plate Dry Cluch |
| Clutch Boost | With Pump |
| Transmission | Model | QJ-ZF |
| Max. Torque | 550 |
| Shifts | QIJIANG 6 speed manual |
| Control Systems | Flexible Shaft |
| Front Axle | 4.5t |
| Rear Axle | 8.0t |
| Braking System | Steering | Power Steering |
| Service Brake | Dual-Circuit Air Braking System |
| Parking Brake | Diaphragm Spring Brake |
| F/R Braking Dia. | Ф400 |
| F/R Braking Shoe Width | 130/155 |
| Suspension Style | Steel Leaf Spring |
| Tyre | 8.25-20 |
| Oil Tank Capacity | 135L |
Standard and optio
nal configuration
| Items | Name | Specification |
| 1 | Front Windscreen | Fixed, Laminated Glass, |
| 2 | Rear Windscreen | Fixed, Toughened Glass |
| 3 | Instrument Board | Whole Sealed |
| 4 | Inner Decoration | Plastics |
| 5 | Rearview Mirror | Pole Type |
| 6 | Inside Mirror | Standard |
| 7 | Passenger Door | Pneumatic Out Swing Door |
| 8 | Side Window | Whole Sliding |
| 9 | Driver Seat | Vinyl Front/ Rear Adjustable Driving Seat |
| 10 | Passenger Seat | Adjustable Passenger Seat |
| 11 | Clearstory | 1 Unit |
| 12 | Handrail | Door Handrail |
| 13 | Floor Board | Bamboo And Rubber Flower |
| 14 | Rain Wiper | Yes |
| 15 | Radio | Am/Fm Radio |
| 16 | Froth | Front,Rear,Top And Side (10 Mm Thick) |
| 17 | Antisepsis Grade | Superfine |
| 18 | Rear Luggage Box | Yes |
| 19 | Front Defrost | Yes |
| 20 | Air Conditioner | Optional |
| 21 | TV | Optional |
| 22 | Reverse camera | Optional |

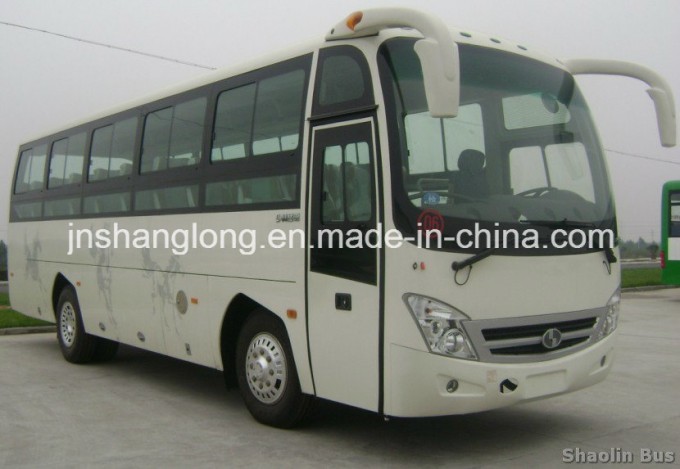

Pictures for reference
Product Image
