Detailed Description
6.6 meters 20-28 seats passenger Van with CUMMINS engine
Detailed information
| Item | SLG6660CE, LHD |
| Dimension | LXWXH (Mm) | 6620x2240x2900 |
| Tread F (MM) | 1750 |
| Tread R (MM) | 1586 |
| Wheelbase (Mm) | 3300 |
| Weight | Total Mass (Kg) | 6600 |
| Performance | Min. Vehicle Turning Circle (M) | 11 |
| Max. Speed (Km/H) | 100 |
| Angle (App/Dep) | 13/10 |
| Seat Capacity | 24+1 seats |
| framework | Straight Beam |
| Clutch | Type | Single Plate Dry Cluch |
| Clutch Boost | With Pump |
| Transmission | Model | DF5S300 |
| Max. Torque | 300 |
| Shifts | 5 speed manual |
| Control Systems | flexible shaft |
| Front Axle | 2.3T |
| Rear Axle | 5T |
| Braking System | Steering | Power Steering |
| Service Brake | Dual-Circuit Air Braking System |
| Parking Brake | Diaphragm Spring Brake |
| F/R Braking Dia. | Ф310 |
| F/R Braking Shoe Width | 120/150 |
| Suspension Style | MULTIPLE-LEAF SPRING |
| Tyre | 7.00-16 |
| Oil Tank Capacity | 90L |
Standard and optio
nal configuration
| Items | Name | Specification |
| 1 | Curtain | Fixed, laminated glass, |
| 2 | Instrument board | Omnisea |
| 3 | Inner decoration | Plastics |
| 4 | Rearview mirror | Rabbit ear rear view mirror |
| 5 | Inside mirror | Standard |
| 6 | Passenger door | Manual folding passenger door |
| 7 | Side window | Up the adhesive, the push and pull side window |
| 8 | Passenger seat | Single seat width 420 two-seater840 ordinary seats |
| 9 | Clearstory | Escape hatch |
| 10 | Steering wheel | Adjustable steering wheel |
| 11 | Air conditioner | optional |
| 12 | Outside luggage rack | optional |
| 13 | Interphone | optional |
| 14 | Automobile passenger door | optional |

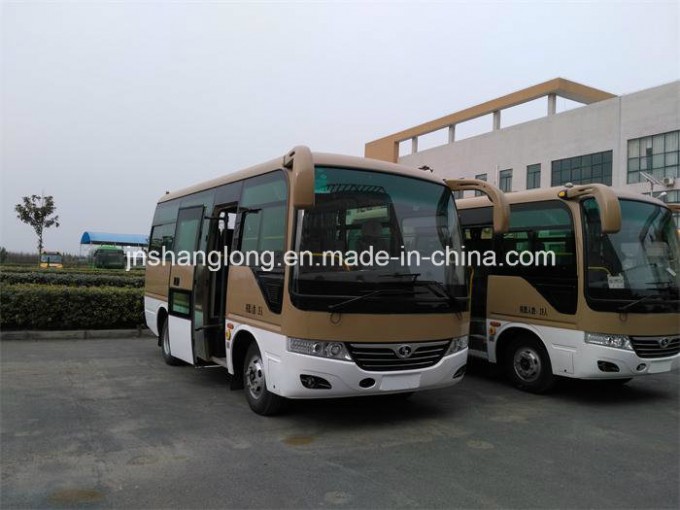

Product Image
