15 Seats Gasoline High Roof Minibus For Sale(GDQ6531A1)
Jinan Shanglong Internatio
nal Trade Co., Ltd is located in Jinan, Shandong Province, China. With more years development, we specializes in exporting minibus and spare parts.
More informations a
bout minibus, please co
ntact me at any time. Thanks a lot.
| Engine | MINI BUS IMAGE |
|
| Engine type:491Q-ME(EFI) |
| displacement:2237 cc |
| power:76hp/ 4600rpm |
| torque:193N.m/ 2000-2600 rpm |
| Type | 4-cylinder, water-cooled, EFI, Gasoline |
| Compssion ratio | 8.8:1 |
| Max.Power (hp/rpm) | 76/4600 |
| Max.torque (N.m/rpm) | 193/2000-2600 |
| Fuel consumption (L/100km) | 9.8 |
| Emission standard | Euro II |
| SPECIFICATION |
| Overall dimension (mm) | Length | 4920 |
| Width | 1850 |
| Height | 1930(Standard) |
| Wheel base (mm) | 2600(Standard wheelbase) |
| Tread, front/rear (mm) | 1430/1430 |
| Min. ground clearance (mm) | 165 |
| Curb vehicle weight (kg) | 1620 |
| Gross vehicle weight (kg) | 2420 |
| Seating capacity (persons) | 14-15 seats |
| Fuel tank volume (L) | 70 |
| Tires | 195R15C |
| Steering | Rack and Pinion |
| Suspension | Front | Independent Suspension by double beams with torsion bar spring |
| Rear | Leaf springs |
| Braking | Front | Disc type |
| Rear | Drums type Hydraulic braking system with vacuum booster |
| Clutch type | Single plate, dry type diaphragm spring with tensional vibration damper |
| Gearbox | 5 speed manual |
| Max. gradability (%) | ≥32 |

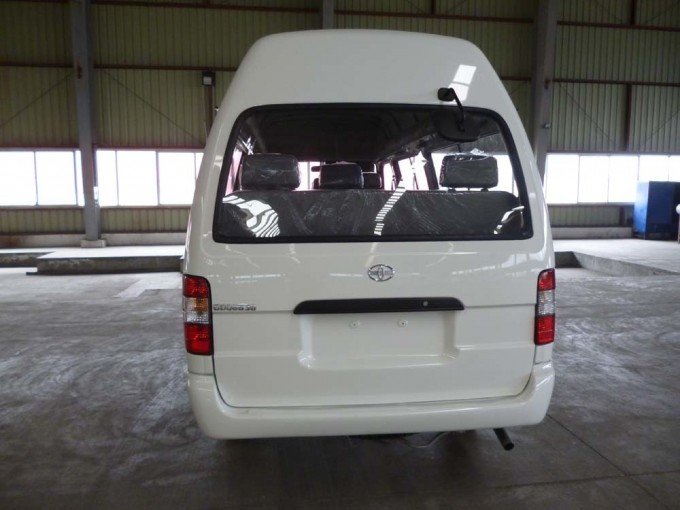

Product Image
