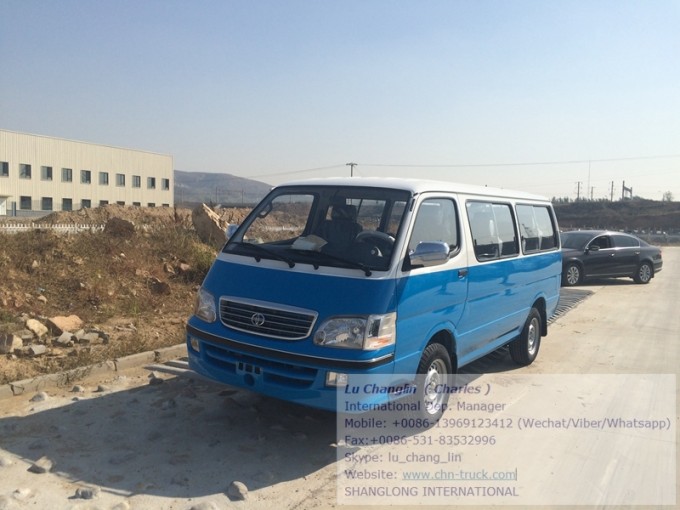

| Engine | MINI BUS IMAGE | ||||
| Engine type:491Q-ME(EFI) | |||||
| displacement:2237 cc | |||||
| power:76hp/ 4600rpm | |||||
| torque:193N.m/ 2000-2600 rpm | |||||
| Type | 4-cylinder, water-cooled, EFI, Gasoline | ||||
| Compssion ratio | 8.8:1 | ||||
| Max.Power (hp/rpm) | 76/4600 | ||||
| Max.torque (N.m/rpm) | 193/2000-2600 | ||||
| Fuel consumption (L/100km) | 9.8 | ||||
| Emission standard | Euro II | ||||
| SPECIFICATION | |||||
| Overall dimension (mm) | Length | 4920 | |||
| Width | 1850 | ||||
| Height | 1930(Standard) | ||||
| Wheel base (mm) | 2600(Standard wheelbase) | ||||
| Tread, front/rear (mm) | 1430/1430 | ||||
| Min. ground clearance (mm) | 165 | ||||
| Curb vehicle weight (kg) | 1620 | ||||
| Gross vehicle weight (kg) | 2420 | ||||
| Seating capacity (persons) | 14-15 seats | ||||
| Fuel tank volume (L) | 70 | ||||
| Tires | 195R15C | ||||
| Steering | Rack and Pinion | ||||
| Suspension | Front | Independent Suspension by double beams with torsion bar spring | |||
| Rear | Leaf springs | ||||
| Braking | Front | Disc type | |||
| Rear | Drums type Hydraulic braking system with vacuum booster | ||||
| Clutch type | Single plate, dry type diaphragm spring with tensional vibration damper | ||||
| Gearbox | 5 speed manual | ||||
| Max. gradability (%) | ≥32 | ||||
