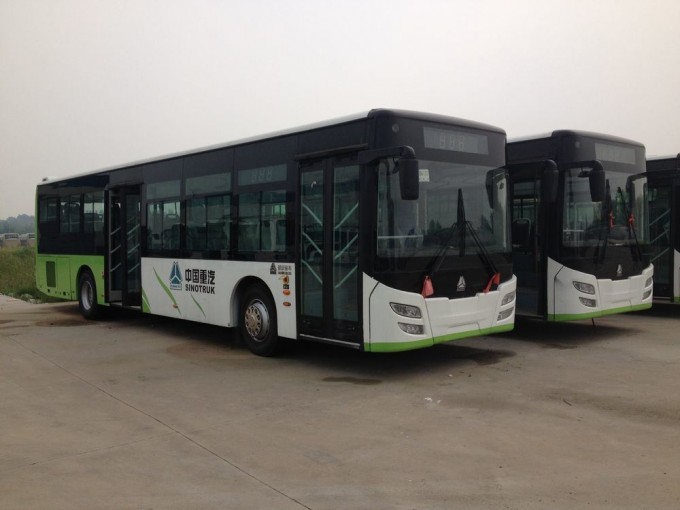

HOWO City Bus

General data (mm)
Overall length (mm) 10500
(mm)
Overall width (mm) 2500
(mm)
Overall height (mm) 3080(3140)
(mm)
Inside height (mm) 2270
(mm)
Axle distance (mm) 5000
(mm)
Front overhang / Rear overhang (mm) 2250/3250
Angle of approach / departure 7.0/7.0
(mm)
First step (mm) ≤ 380
Kg
G. V. W (kg) 15500

Engine
Engine Model C245 20
Engine
Maker
DonGFENG Cummins

Engine location / fuel
At rear / diesel oil

Engine type
6-cylinder in-line with water cooling, turbo-charging and intercooling
(kw)
Maximum output (kw) 180
(N. M)
Maximum torque (N. M) 1025
(ml)
Displacement (ml) 8300

Emission
Euro II

Item
Standard Configuration
Option

Chassis
Maker
SINOTRUK

Gearbox HW12705
SINOTRUK 5-speed gearbox

Clutch
? 430mm Clutch

Front axle
SINOTRUK 5.5T Front axle

Rear axle
SINOTRUK 11T refined rear axle, single reduction

Suspension
Muotileaved spring, domestic shock absorber
6 air bag suspension
+USD4800

Steering
Integral power steering gear, right hand drive ZF8098 Integral power steering gear
+USD640

Brakes
Air controlled dual-cycle service brakes, energy storage spring parking brakes Electric eddy-current retarder, +USD3950
WABCO ABS +USD480

Fuel tank 200L

Tire 275/70R22.5
Quantity: 6

Battery/generator 200A. H/70A 24V

Other Automatic centralized lubrication\+USD640
Three-speed electromagnetic clutch device +USD470
Automatic slack adjuster

Body
frame
Rectangular hollow sections welding, two steps

Interior
Moulded interior

Door and pump
Pneumatic swinging-in double doors in front and at rear

Window / windscreen
Push-pull side window, full view doubling front windscreen, side window curtain


Rear vision system
Electric outer rear-view mirror, inner mirror
Monitoring system for reversing and getting off

Air conditioner
Non-independent A/C28000Kcal/h

Warming system
Water cycling defrosting

Audio visual system MP3 PLAYER Hard disc media player; 17" LCD (one)

Wiper
Opposed wiper (with washers)

Seats
Plastic passenger seats

Paint
metallic paint

Other
Plastic handrail, Microphone, driver sun visor in front, 3 scuttles (without ventilator)), driver fan, one 2Kg fire extinguisher CAN bus instrument
Loudspeaker+USD125
Stainless steel handrail\coin box
LED direction board, children elevation line, \off bell, inner rolling screen
Quartz sand plastic flooring+USD470, electronic clock, hand straps
