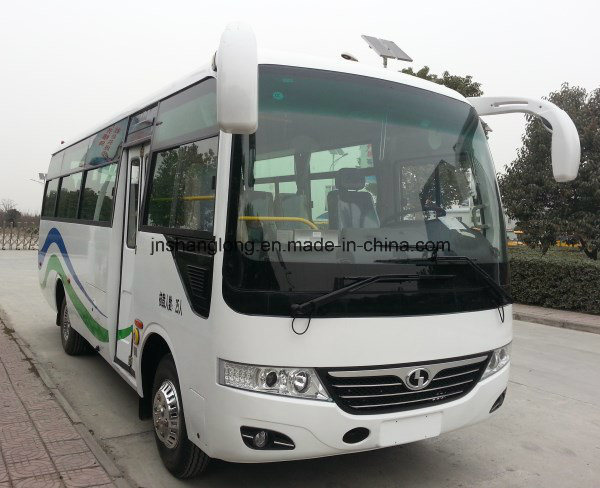

| ITEM | SLG6720C3E | |
| DIMENSION | LENGTH×WIDTH×HEIGHT(MM) | 7220×2240×2840 |
| Tread F (MM) | 1750 | |
| Tread R (MM) | 1602 | |
| WHEELbase (MM) | 3650 | |
| WEIGHT | TOTAL MASS (KG) | 7300 |
| PERFORMANCE | MIN. VEHICLE TURNING CIRCLE (M) | 11 |
| MAX. SPEED (KM/H) | 100 | |
| ANGLE (APP/DEP) | 13/10 | |
| SEAT CAPACITY | 30 seats | |
| frameWORK | STRAIGHT BEAM | |
| ENGINE | MODEL | YC4D130-20 |
| TYPE | 4 CYLINDER IN-LINE | |
| RATED-POWER (KW/R/MIN) | 96KW | |
| MAX. TORQUE (N.M) | 340 | |
| EMISSION STANDARD | EURO II | |
| FUEL TYPE | IESEL | |
| CLUTCH | TYPE | SINGLE PLATE DRY CLUCH |
| CLUTCH BOOST | WITH PUMP | |
| TRANSMISSION | MODEL | DF5S550 |
| MAX. TORQUE | 420 | |
| SHIFTS | 5 SPEED MANUA | |
| ConTROL SYSTEMS | FLEXIBLE SHAFT | |
| FRONT AXLE | 2.7T | |
| REAR AXLE | 5T | |
| BRAKING SYSTEM | STEERING | POWER STEERING |
| SERVICE BRAKE | DUAL-CIRCUIT AIR BRAKING SYSTEM | |
| PARKING BRAKE | Diaphragm spring brake | |
| F/R BRAKING DIA. | Ф310 | |
| F/R BRAKING SHOE Width | 130/160 | |
| SUSPENSION STYLE | MULTI LEAF SPRING | |
| TYRE | 7.50-16 | |
| OIL TANK CAPACITY | 90L | |
| ITEMS | NAME | SPECIFICATION | Remark |
| 1 | FRONT WINDSCREEN | FIXED, LAMINATED GLASS, | |
| 2 | REAR WINDSCREEN | FIXED, TOUGHENED GLASS | |
| 3 | BATTERY | TWO PIECE OF 6-QA-105(15)BATTTERY | |
| 4 | INNER DECORATION | PLASTICS | |
| 5 | REARVIEW MIRROR | RABBIT EAR REAR VIEW MIRRIOR | |
| 6 | INSIDE MIRROR | STANDARD | |
| 7 | PASSENGER DOOR | MANUAL FOLDING PASSENGER DOOR | |
| 8 | SIDE WINDOW | UP THE ADHESIVE, THE PUSH AND PULL SIDE WINDOW | |
| 9 | PASSENGER SEAT | SINGLE SEAT WIDTH 420,800 ORDINARY SEAT | |
| 10 | CLEARSTORY | ESCAPE HATCH | |
| 11 | STEERING WHEEL | ADJUSTABLE STEERING WHEEL | |
| 12 | FLOOR BOARD | FLAT FLOOR | |
| 13 | AIR CONDITIONER | AIR CONDITIONER |
