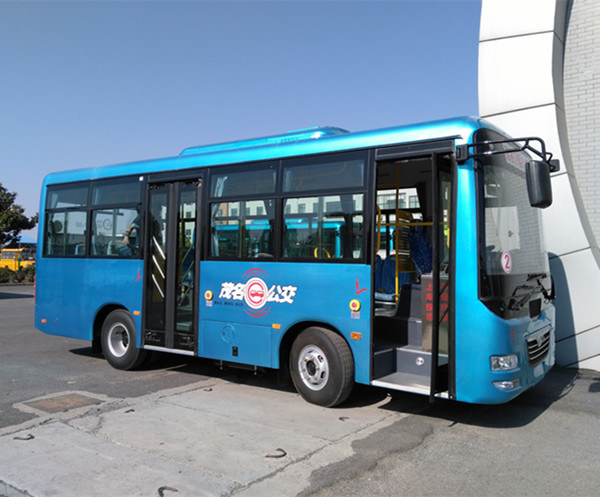

7.5m City Bus with 31-35 Seats

7.5m City Bus with 31-35 Seats

Feature
Δ Engine: Cummins and Yuchai
Δ Transmission: ZF technology 5speeds manual transmission
Δ Steel: from BAO STEEL
Δ Advanced production line and producing technology
Δ 3years or 180,000km warranty

Specification

ITEM
DIMENSION	LENGTH*WIDTH*HEIGHT(MM)	7480x2330x3160
	Tread F(MM)	1830
	Tread R(MM)	1680
	WHEELbase (MM)	3800
WEIGHT	TOTAL MASS (KG)	8000
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	11
	MAX. SPEED (KM/H)	100
	ANGLE (APP/DEP)	13/10
Max SEATS CAPACITY		31-35
frameWORK		STRAIGHT BEAM
ENGINE	MODEL	CUMMINS EQB140-20
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	103KW
	MAX. TORQUE (N.M)	450/500
	EMISSION STANDARD	EURO 2
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
	CLUTCH BOOST	WITHPUMP
TRANSMISSION	Gearbox	ZF TECHNOLOGY QIJIANG 5SPEED- MANUAL
	ConTROL SYSTEMS	FLEXIBLESHAFT
FRONT AXLE		2.7T
REAR AXLE		5.5T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	Ф310
	F/R BRAKING SHOE Width	120/150
SUSPENSION STYLE		MULTIPLE-LEAF SPRING
TYRE		8.25-16(8.25R16)
OIL TANK CAPACITY		135L

Company Introduction

We are one of the major bus manufacturers in China which is certified by Chinese Ministry of Industry and Information Technology(MIIT).

Established in 1983, with more than 3decades of development, it is now apowerful enterprise with 3,000 employees and 4assembly factories. We are capable of producing 20,000 buses every year.

We produce different types of coaches, buses, city buses, cargo van, school buses and bus chassis. The products we export have gained the certification of CCC and ISO9001. Our customers and business partners are worldwide.

Adhere to the value of "CUSTOMERS BEING SUPREME, SERVICE BEING ENDLESS", we will spare no efforts to dedicate ourselves to meet the satisfaction and benefit of our customers. The best quality products and the strongest support are always guaranteed to all of our clients and business partners.
