Detailed Description
China 12 meters Passenger Bus with 55 seats-60 seats
Detailed information
| Item | SLG6120CE--LHD |
| Dimension | LXWXH (Mm) | 11940x2550x3600 |
| Seat Capacity | 55-60 seats (including driver) |
| framework | Straight Beam |
| Engine | Model | Front engine. YC6A240-20 |
| Type | 6 Cylinder In-Line |
| Rated-Power (kw/r/min) | 177KW (240HP) |
| Max. Torque (N.M) | 890 |
| Emission Standard | Euro 2 |
| Fuel Type | Diesel |
| Clutch | Type | Single Plate Dry Cluch |
| Clutch Boost | With Pump |
| Transmission | Model | ZF technology |
| Max. Torque | 800 |
| Shifts | 6 speed manual |
| Control Systems | flexible shaft |
| Front Axle | 5.5T |
| Rear Axle | 11.0T |
| Braking System | Steering | Power Steering |
| Service Brake | Dual-Circuit Air Braking System |
| Parking Brake | Diaphragm Spring Brake |
| F/R Braking Dia. | Ф400 |
| F/R Braking Shoe Width | 130/155 |
| Suspension Style | steel leaf spring |
| Tyre | 10.00-20 |
| Oil Tank Capacity | 300 L |
Standard configuration
| Items | Name | Specification |
| 1 | Rear Windscreen | Fixed, Toughened Glass |
| 2 | Instrument Board | Whole Sealed |
| 3 | Inner Decoration | Plastics |
| 4 | Rearview Mirror | Pole Type |
| 5 | Inside Mirror | Standard |
| 6 | Passenger Door | Pneumatic Out Swing Door |
| 7 | Side Window | Whole Sliding |
| 8 | Driver Seat | Vinyl Front/ Rear Adjustable Driving Seat |
| 9 | Passenger Seat | Adjustable Passenger Seat |
| 10 | Clearstory | 1unit |
| 11 | Handrail | Door Handrail |
| 12 | Floor Board | Bamboo And Rubber Flower |
| 13 | Rain Wiper | Yes |
| 14 | Radio | Am/Fm Radio |
| 15 | Froth | Front, Rear, Top And Side (10 Mm Thick) |
| 16 | Antisepsis Grade | Superfine |
| 17 | Rear Luggage Box | Yes |
| 18 | Front Defrost | Yes |
| 19 | Air Conditioner | Yes |
| 20 | Safety belts and armrest | Yes |
| 21 | CUMMINS engine | Optional (+ USD 3980.00) |

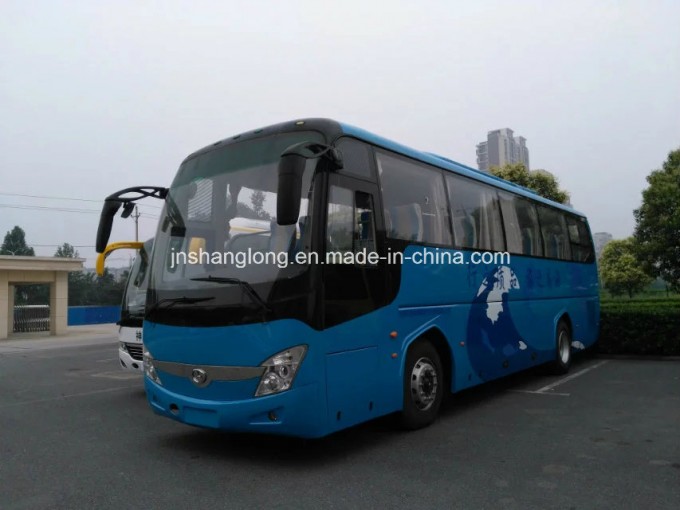

Pictures for reference
