Detailed Description
ANKAI CITY BUS, DIESEL DRIVEN, 30-31 SEATS, 10M LONG, MAIN FEATURES&co
lon;
1. active and passive safety protection
2. energy saving, low fuel consumption
3. excellent comfortability
4. humanistic design
5. anticorrosion technology
| Model | HFF6104GK39 |
|---|
| Profile Dimension(mm) | 10320×2500×2900,3140 |
|---|
| Wheel base(mm) | 5000 |
|---|
| Track Space (mm) | 2020 ,2096 |
|---|
| F/R Overhang (mm) | 2340 ,2980 |
|---|
| Kerb Mass (kg) | 9500 |
|---|
| Maximum Total Mass (kg) | 15500 |
|---|
| Max Speed (km/h) | 90 |
|---|
| Max Gradeability (%) | ≥20 |
|---|
| Minimum Diameter of Turning Circle(m) | 21 |
|---|
| Ground Clearance(mm) | ≥200 |
|---|
| Approach/Departure Angle(o) | 8/8 |
|---|
| Fuel Tank(L) | 200 |
|---|
| Engine |
|---|
| Model | YC6G240-30 | ISBE220 31 | CA6DF3-24E3 | YC6J220-30 | BF6M1013-24E3 |
|---|
| Position | rear | rear | rear | rear | rear |
|---|
| Displacement(L) | 7.8 | 5.9 | 6.74 | 6.5 | 7.146 |
|---|
| Rated Power(kw) | 177 | 162 | 192 | 162 | 177 |
|---|
| Fuel Type | diesel | diesel | diesel | diesel | diesel |
|---|
| Emission | EuroIII | EuroIII | EuroIII | EuroIII | EuroIII |
|---|
|
| Chassis |
|---|
| Transmission | QJ805 |
|---|
| Front Axle | AK153 |
|---|
| Real Axle | AK153 |
|---|
| Suspension | Power Steering |
|---|
| Steering System | Leaf Spring Front 4/Rear 5 or Air Suspension |
|---|
| Brake System | Dual-circuit Air Break |
|---|
| Tyre | 10.00-20,10.00R20,275/70R22.5,11R22.5 |
|---|
| Body |
|---|
| Structure | Monocoque |
|---|
| Door | F & R inward swing doors, F single R double door leaves |
|---|
| Seats Capacity | 30--31 |
|---|
| Air Conditioner | 28000Kcal/h |
|---|
| Audiovisual System |
|
|---|

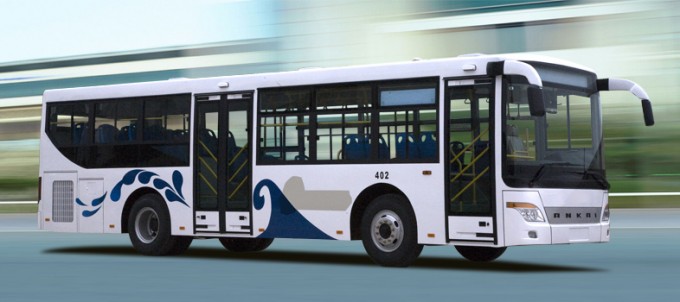

Product Image
