Detailed Description
6m 19-25 Seats Diesel City BusMain Co
nfiguration and Basic Parameters
| DIMENSION | LENGTH*WIDTH*HEIGHT(MM) | 5995×2240×3000 |
| Tread F (MM) | 1750 |
| Tread R (MM) | 1586 |
| WHEELbase (MM) | 3300 |
| WEIGHT | TOTAL MASS (KG) | 5700 |
| PERFORMANCE | MIN. VEHICLE TURNING CIRCLE (M) | 11 |
| MAX. SPEED (KM/H) | 100 |
| ANGLE (APP/DEP) | 13/10 |
| Max SEATS CAPACITY | 21-24 seats |
| frameWORK | STRAIGHT BEAM |
| ENGINE | MODEL | EURO2 YC4F115-20
|
| TYPE | 4 CYLINDER IN-LINE |
| RATED-POWER (KW/R/MIN) | 85KW |
| MAX. TORQUE (N.M) | 300 |
| EMISSION STANDARD | EURO 2/EURO3 |
| FUEL TYPE | DIESEL |
| CLUTCH | TYPE | SINGLE PLATE DRY CLUCH |
| CLUTCH BOOST | WITH PUMP |
| TRANSMISSION | Gearbox | 5 SPEED- MANUAL |
| ConTROL SYSTEMS | FLEXIBLE SHAFT |
| FRONT AXLE | 2.3T |
| REAR AXLE | 5T |
| BRAKING SYSTEM | STEERING | POWER STEERING |
| SERVICE BRAKE | DUAL-CIRCUIT AIR BRAKING SYSTEM |
| PARKING BRAKE | Diaphragm spring brake |
| F/R BRAKING DIA. | Ф310 |
| F/R BRAKING SHOE Width | 120/150 |
| SUSPENSION STYLE | MULTIPLE-LEAF SPRING |
| TYRE | 7.00-16 |
| OIL TANK CAPACITY | 90L |
Company Introduction
Our factorywas established in 1983.We havetotal assets of 1,090 million USDwith more than 2290 staff; the factory covers an area of more than 600,000 m2 and the building area is more than 200,000 m2.Our company has already developed into the China's key bus manufacturing enterprise with specialized independent research and development, large-scale production and automatic test.Our buses are exported to Angola, Congo,Russia,Ukraine,Kazakstan,Cotedivore.

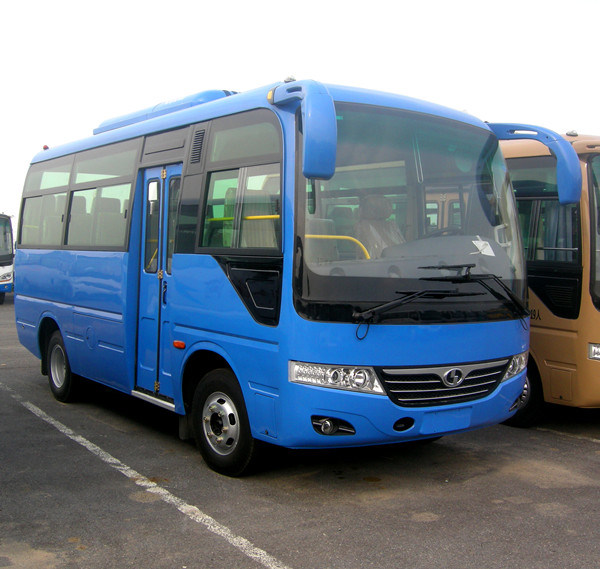

Product Image
