Detailed Description

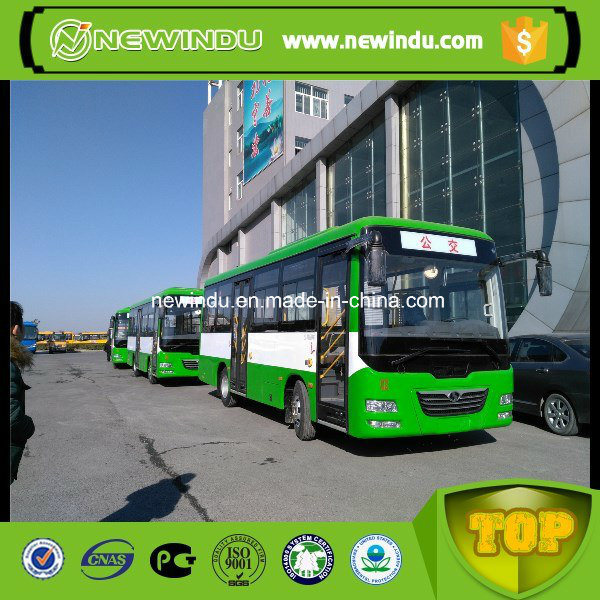

Shaolin 29-33seats 7.2meters Length Diesel and CNG Bus
| ITEM | SLG6720C4E RHD/LHD |
| DIMENSION | LENGTH×WIDTH×HEIGHT(MM) | 7220×2240×3020 |
| Tread F(MM) | 1835 |
| Tread R(MM) | 1586 |
| WHEELbase (MM) | 3800 |
| WEIGHT | TOTAL MASS (KG) | 7400 |
| PERFORMANCE | MIN. VEHICLE TURNING CIRCLE (M) | 11 |
| MAX. SPEED (KM/H) | 100 |
| ANGLE (APP/DEP) | 13/10 |
| Max SEATS CAPACITY | 29-33 seats |
| frameWORK | STRAIGHT BEAM |
| ENGINE | MODEL | EURO2 YC4D130-20
EURO 3YC4D130-30
|
| TYPE | 4 CYLINDER IN-LINE |
| RATED-POWER (KW/R/MIN) | 96KW |
| MAX. TORQUE (N.M) | 420 |
| EMISSION STANDARD | EURO 2/EURO3 |
| FUEL TYPE | DIESEL |
| CLUTCH | TYPE | SINGLE PLATE DRY CLUCH |
| CLUTCH BOOST | WITHPUMP |
| TRANSMISSION | Gearbox | 5 SPEED- MANUAL |
| ConTROL SYSTEMS | FLEXIBLESHAFT |
| FRONT AXLE | 2.7T |
| REAR AXLE | 5T |
| BRAKING SYSTEM | STEERING | POWER STEERING |
| SERVICE BRAKE | DUAL-CIRCUIT AIR BRAKING SYSTEM |
| PARKING BRAKE | Diaphragm spring brake |
| F/R BRAKING DIA. | Ф310 |
| F/R BRAKING SHOE Width | 120/150 |
| SUSPENSION STYLE | MULTIPLE-LEAF SPRING |
| TYRE | 7.50-16 |
| (OIL TANK CAPACITY | 90L |
------------------
