Detailed Description
ANKAI CITY BUS, DIESEL DRIVEN, 12M LONG, MAIN FEATURES&co
lon;
1. active and passive safety protection
2. energy saving, low fuel consumption
3. excellent comfortability
4. humanistic design
5. anticorrosion technology
| Model | HFF6123GZ-4 City Bus |
|---|
| Profile Dimension(mm) | 12000×2550×3100,3250 |
|---|
| Wheel base(mm) | 6100 |
|---|
| Track Space (mm) | 2096 ,2046/1830 |
|---|
| F/R Overhang (mm) | 2620/3280 |
|---|
| Kerb Mass (kg) | 10780,10980 |
|---|
| Maximum Total Mass (kg) | 16500 |
|---|
| Max Speed (km/h) | 90 |
|---|
| Max Gradeability (%) | ≥20 |
|---|
| Minimum Diameter of Turning Circle(m) | ≤24 |
|---|
| Ground Clearance(mm) | ≥200 |
|---|
| Approach/Departure Angle(o) | 8/8 |
|---|
| Fuel Tank(L) | 200 |
|---|
| Engine |
|---|
| Model | ISBE4 250B | YC6L280-40 | SC9DF260Q4 | YC6L280-42 |
|---|
| Position | rear | rear | rear | rear |
|---|
| Displacement(L) | 6.7 | 6700 | 8.424 | 8.424 |
|---|
| Rated Power(kw) | 184 | 206 | 192 | 206 |
|---|
| Fuel Type | diesel | diesel | diesel | diesel |
|---|
| Emission | EuroIV | EuroIV | EuroIV | EuroIV |
|---|
|
| Chassis |
|---|
| Transmission | QJ1205,T310R |
|---|
| Front Axle | RL85A,AK468 |
|---|
| Real Axle | AV132,AK468 |
|---|
| Suspension | Power Steering |
|---|
| Steering System | Leaf Spring Front 4/Rear 5 or Air Suspension |
|---|
| Brake System | Dual-circuit Air Brake |
|---|
| Tyre | 11R22.5,295/80R22.5,275/70R22.5 |
|---|
| Body |
|---|
| Structure | Monocoque |
|---|
| Door | F & R inward swing doors, F double R double door leaves |
|---|
| Seats Capacity | 34--35 |
|---|
| Air Conditioner | 32000Kcal/h |
|---|

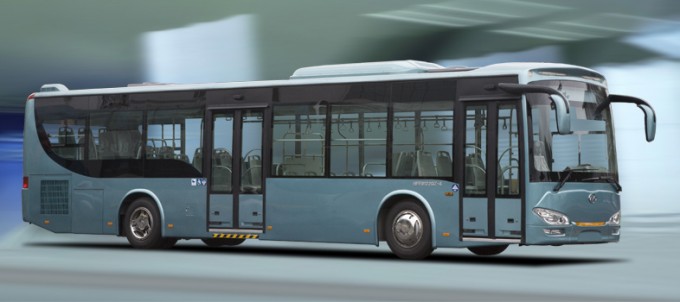

Product Image
