Detailed Description
ANKAI CITY BUS, NATURAL GAS ENGINE,34--35 SEATS,12M LONG, MAIN FEATURES&co
lon;
1. active and passive safety protection
2. energy saving
3. excellent comfortability
4. humanistic design
5. anticorrosion technology
| Model | HFF6126GZ-4 City Bus |
|---|
| Profile Dimension(mm) | 12000×2550×3150,3250,3390 |
|---|
| Wheel base(mm) | 6100 |
|---|
| Track Space (mm) | 2096 ,2020/1830 |
|---|
| F/R Overhang (mm) | 2620/3280 |
|---|
| Kerb Mass (kg) | 11680,11980 |
|---|
| Maximum Total Mass (kg) | 17500 |
|---|
| Max Speed (km/h) | 85 |
|---|
| Max Gradeability (%) | ≥20 |
|---|
| Minimum Diameter of Turning Circle(m) | ≤24 |
|---|
| Ground Clearance(mm) | ≥200 |
|---|
| Approach/Departure Angle(o) | 8/8 |
|---|
| Fuel Tank(L) | 580 |
|---|
| Engine |
|---|
| Model | NQ190 |
|---|
| Position | rear |
|---|
| Displacement(L) | 5.785 |
|---|
| Rated Power(kw) | 110 |
|---|
| Fuel Type | NG |
|---|
| Emission | EuroIII |
|---|
|
| Chassis |
|---|
| Transmission | QJ1205,T310R |
|---|
| Front Axle | RL85A,AK468 |
|---|
| Real Axle | AV132,AK468 |
|---|
| Suspension | Steering System |
|---|
| Steering System | Leaf Spring Front 4/Rear 5 or Air Suspension |
|---|
| Brake System | Dual-circuit Air Brake |
|---|
| Tyre |
|
|---|
| Body |
|---|
| Structure | Monocoque |
|---|
| Door | F& R inward swing doors, F double R double door leave |
|---|
| Seats Capacity | 34--35 |
|---|
| Air Conditioner | 32000Kcal/h |
|---|

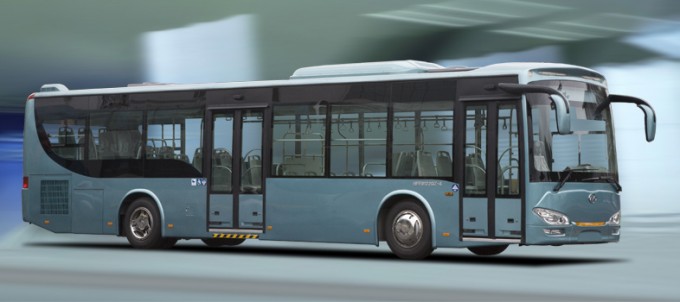

Product Image
