Detailed Description
7.5 meters Double Doors 29 seats City Bus with CUMMINS engine (front)
I---Main Performance Parameter
Size/ total weight:7480*2330*3190 mm/7850 kgs
Wheel ba
se: 3800 mm
Seats number: 29 seats
Door: two doors (front and rear)
Engine: front engine; CUMMINSISFS 3.8S3141; 105 KW; EURO III
Air conditioner: optiinal
Steering wheel: left hand drive/ right hand drive
II---Detailed infromation
Item | SLG6750C3F, LHD |
Dimension | L*W*H (mm) | 7480*2330*3190 |
Tread (front/rear) (mm) | 1830/1680 |
wheelbase (mm) | 3800 |
Weight | total mass (kg) | 7850 |
Performance | Min. vehicle turning circle (m) | 11 |
Max. speed (km/h) | 105 |
angle (app/dep) | 13/10 |
Seat Capacity | 29 seats |
framework | Straight Beam |
Engine | Model | CUMMINS, ISFS 3.8S3141 |
Type | 4 cylinder in-line |
Rated-Power (kw/r/min) | 105KW |
Max. Torque (N.M) | 500 |
Emission Standard | EURO III |
Fuel Type | diesel |
Clutch | Type | Single Plate Dry Clutch |
Clutch Boost | With Pump |
Transmission | Model | LC6T 6 speed |
Max. Torque | 500 |
Shifts | 6 speed manual |
Control Systems | flexible shaft |
Front Axle | 2.7T |
Rear Axle | 5.5T |
Braking System | Steering | Power Steering |
Service Brake | Dual-Circuit Air Braking System |
Parking Brake | Diaphragm Spring Brake |
F/R Braking Dia. | Ф310 |
F/R Braking Shoe Width | 130/130 |
Suspension Style | multiple-leaf spring |
Tyre | 8.25-16 |
Oil Tank Capacity | 120L |

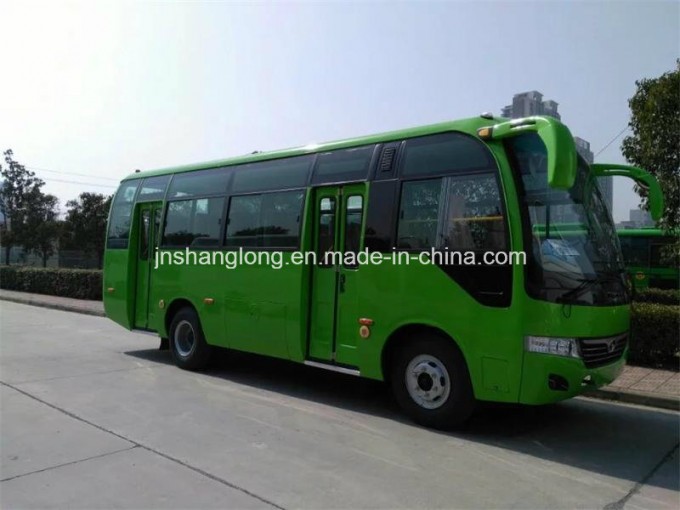

III---Pictures for reference



IV---Optio
nal co
nfiguration
Color: red; yellow; white; black; blue; ............and so on
Seats: Folding seats; Plastic seats;overstuff seat;.......
Interior helped rod: with or without handrail;baggageholder
Air conditioner: optional
