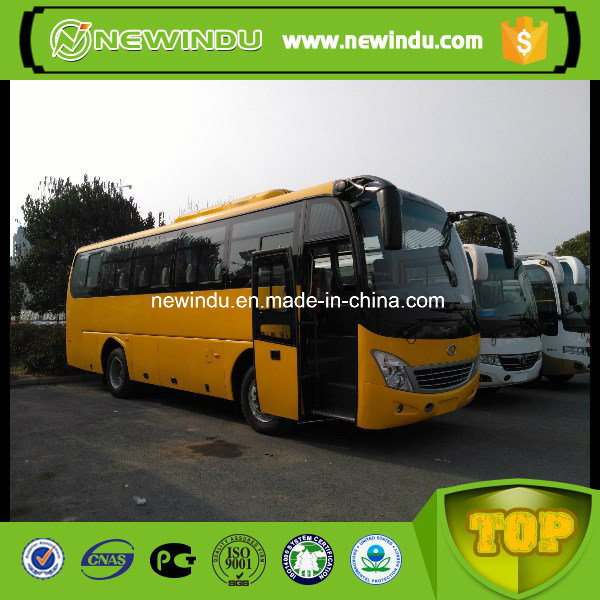

Shaolin 41-43seats 9m Bus Rear Engine Diesel and CNG

Shaolin 41-43seats 9m bus Rear engine Diesel and CNG

Smart and magnificent design
This model is equipped flexible control system with comfortable large space which provide aincomparable experience during driving. Insist the principle of cost efficient, spare parts commonality effectively reduce the use and maintenance cost.
TECHNICAL data:

ITEM		SLG6900C4ER
DIMENSION	LENGTH×WIDTH×HEIGHT(MM)	8995×2450×3330
	Tread F(MM)	2060
	Tread R(MM)	1800
	WHEELbase (MM)	4300
WEIGHT	TOTAL MASS (KG)	12000
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	16512
	MAX. SPEED (KM/H)	100
	ANGLE (APP/DEP)	13/10
Max SEAT CAPACITY		41-43 seats
frameWORK		STRAIGHT BEAM
ENGINE	MODEL	EURO 2CUMMINS ENGINE EQB210-20/155KW EURO 2YC6J210-20/155KW EURO 3CUMMINS ENGINE ISDE 210-30/155KW EURO 3YC6J220-30/162KW EURO 3YC6J230-30/170KW
	TYPE	6 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	155KW/170KW
	MAX. TORQUE (N.M)	730
	EMISSION STANDARD	EURO II/EURO III
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
	CLUTCH BOOST	WITHPUMP
TRANSMISSION	MODEL	ZF TECHNOLOGY QIJIANG
	MAX. TORQUE	730
	SHIFTS	5 SPEED MANUAL/6 SPEED MANUAL
	ConTROL SYSTEMS	FLEXIBLESHAFT
FRONT AXLE		4T
REAR AXLE		8T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	Ф400
	F/R BRAKING SHOE Width	130/155
SUSPENSION STYLE		STEEL LEAF SPRING
TYRE		8.25R20
OIL TANK CAPACITY		240L

------------------
