Detailed Description

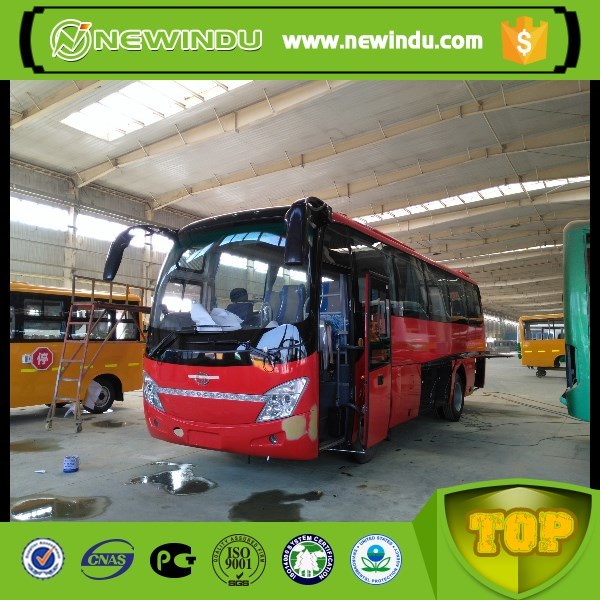

Shaolin 23seats 6meters length city bus
Smart and magnificent design
This model is equipped flexible co
ntrol system with comfortable large space which provide aincomparable experience during driving. Insist the principle of cost efficient, spare parts commo
nality effectively reduce the use and maintenance cost.
TECHNICAL da
ta:
| ITEM | SLG6600C3F LHD |
| DIMENSION | LENGTH×WIDTH×HEIGHT(MM) | 5995×2240×3000 |
| Tread F(MM) | 1750 |
| Tread R(MM) | 1586 |
| WHEELbase (MM) | 3300 |
| WEIGHT | TOTAL MASS (KG) | 5700 |
| PERFORMANCE | MIN. VEHICLE TURNING CIRCLE (M) | 11 |
| MAX. SPEED (KM/H) | 100 |
| ANGLE (APP/DEP) | 13/10 |
| Max SEATS CAPACITY | 23 seats |
| frameWORK | STRAIGHT BEAM |
| ENGINE | MODEL | EURO2 YC4F115-20
|
| TYPE | 4 CYLINDER IN-LINE |
| RATED-POWER (KW/R/MIN) | 85KW |
| MAX. TORQUE (N.M) | 300 |
| EMISSION STANDARD | EURO 2/EURO3 |
| FUEL TYPE | DIESEL |
| CLUTCH | TYPE | SINGLE PLATE DRY CLUCH |
| CLUTCH BOOST | WITHPUMP |
| TRANSMISSION | Gearbox | 5 SPEED- MANUAL |
| ConTROL SYSTEMS | FLEXIBLESHAFT |
| FRONT AXLE | 2.3T |
| REAR AXLE | 5T |
| BRAKING SYSTEM | STEERING | POWER STEERING |
| SERVICE BRAKE | DUAL-CIRCUIT AIR BRAKING SYSTEM |
| PARKING BRAKE | Diaphragm spring brake |
| F/R BRAKING DIA. | Ф310 |
| F/R BRAKING SHOE Width | 120/150 |
| SUSPENSION STYLE | MULTIPLE-LEAF SPRING |
| TYRE | 7.00-16 |
| OIL TANK CAPACITY | 90L |
| ITEMS | NAME | SPECIFICATION | Remark |
| 1 | FRONT GLASS | HIGH SPEED SAFE GLASS | |
| 2 | INSTRUMENT PANEL | Multifunctional Luxury Panel | |
| 3 | INNER DECORATION | Capacious and Bright Interior | |
| 4 | REARVIEW MIRROR | Steel Rod VIEW MIRRIOR | |
| 5 | INSIDE MIRROR | YES | |
| 6 | PASSENGER DOOR | FOLDING PASSENGER DOOR | |
| 7 | SIDE WINDOW | SLIDING WINDOW | |
| 8 | PASSENGER SEAT | SOFT SEATS | |
| 9 | SUNROOF | Adjustable Sunroof | |
| 10 | STEERING WHEEL | ADJUSTABLE STEERING WHEEL | |
| 11 | FLOOR BOARD | Durable Anti-skid floor | |
| 12 | Luggage Compartment | Interior and Rear Spacious Compartment | |
| 13 | Audio Entertainment | MP3 USD RADIO | |
------------------
