Detailed Description
China Diesel Engine 12m 45-60 seats City Bus
Main parameter:
| Item | SLG6120C4GZR |
| Dimension | LXWXH (Mm) | 12000x2500x3325 |
| Tread F (MM) | 1860 |
| Tread R (MM) | 2020 |
| Wheelbase (Mm) | 6100 |
| Weight | Total Mass (Kg) | 10360 |
| Performance | Min. Vehicle Turning Circle (M) | 24000 |
| Max. Speed (Km/H) | 69 |
| Angle (App/Dep) | 8/8 |
| Seat Capacity | 45-60 seats |
| framework | STRAIGHT BEAM |
| Engine | Model | YC6L260-20/191KW |
| Type | 6 CYLINDER IN-LINE |
| Rated-Power (kw/r/min) | 191KW |
| Max. Torque (N.M) | 1030 |
| Emission Standard | EURO II |
| Fuel Type | DIESEL |
| Clutch | Type | SINGLE PLATE corkscrews CLUCH |
| Transmission | Model | WITH PUMP |
| Max. Torque | ALLISON T310R |
| Shifts | 1030 |
| Control Systems | AUTOMATIC |
| Front Axle | FLEXIBLE SHAFT |
| Rear Axle | 6.3T |
| Braking System | Steering | 11.5T |
| Service Brake | POWER STEERING |
| Parking Brake | DUAL-CIRCUIT AIR BRAKING SYSTEM |
| F/R Braking Dia. | Diaphragm spring brake |
| F/R Braking Shoe Width | Ф400 |
| Suspension Style | STEEL LEAF SPRING |
| Tyre | 295/80R22.5 |
| Oil Tank Capacity | 200L |
Standard Configuration:
| Items | Name | Specification |
| 1 | Front Windscreen | Fixed, Laminated Glass, |
| 2 | Rear Windscreen | Fixed, Toughened Glass |
| 3 | Instrument Board | Whole Sealed |
| 4 | Inner Decoration | Plastics |
| 5 | Rearview Mirror | Pole Type |
| 6 | Inside Mirror | Standard |
| 7 | Passenger Door | Pneumatic Out Swing Door |
| 8 | Side Window | Whole Sliding |
| 9 | Driver Seat | Vinyl Front/ Rear Adjustable Driving Seat |
| 10 | Passenger Seat | Vinyl passenger seat with armrest |
| 11 | Clearstory | 1 Unit |
| 12 | Handrail | door handrail |
| 13 | Floor Board | Steel decorative Pattern Flower |
| 14 | TV | (17"LED TV |
| 15 | Rain Wiper | Yes |
| 16 | Radio | Am/Fm Radio |
| 17 | Froth | Front,Rear,Top And Side (10 Mm Thick) |
| 18 | Antisepsis Grade | Superfine |
| 19 | Safety Exit | Yes |
| 20 | Driver door | Yes |
| 21 | Engine cover | Yes |
| 22 | Rear Luggage Box | Yes |
| 23 | Front Defrost | Yes |
| 24 | A/C | 32KW(32000KCAL/H) |

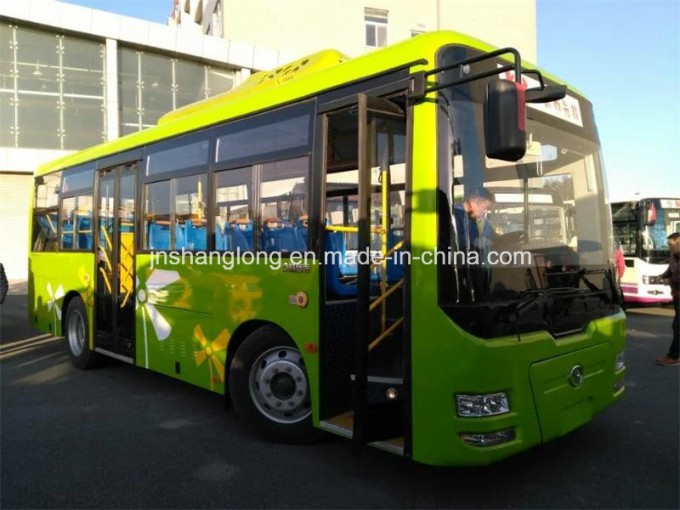

Pictures for reference:
