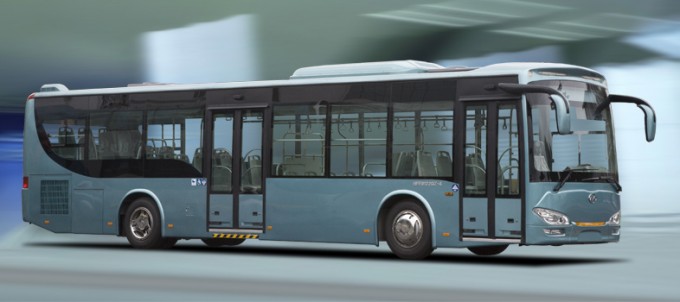

The Key Technology of Ankai is derived from the world's leading bus manufacturer, German KASSBOHREER/SETRA nowadays EVO BUS of Daimler Benz Group.ANKAI CITY BUS, DIESEL DRIVEN, 12M LONG, MAIN FEATURES:
1. active and passive safety protection
2. energy saving, low fuel consumption
3. excellent comfortability
4. humanistic design
5. anticorrosion technology
| Model | HFF6122GZ-4 City bus |
|---|
| Profile Dimension(mm) | 12000×2550×3100,3250 |
|---|
| Wheel base(mm) | 6100 |
|---|
| Track Space (mm) | 2096,2020/1836 |
|---|
| F/R Overhang (mm) | 2620/3280 |
|---|
| Kerb Mass (kg) | 10980/10780 |
|---|
| Maximum Total Mass (kg) | 16500 |
|---|
| Max Speed (km/h) | 90 |
|---|
| Max Gradeability (%) | 20 |
|---|
| Minimum Diameter of Turning Circle(m) | 23 |
|---|
| Ground Clearance(mm) | 200 |
|---|
| Approach/Departure Angle(o) | 8/8 |
|---|
| Fuel Tank(L) | 200 |
|---|
| Engine |
|---|
| Model | WP10.270 | CA6DF3-24E3 | YC6G270-30 | WD615.91 | YC6G240-30 |
|---|
| Position | rear | rear | rear | rear | rear |
|---|
| Displacement(L) | 9.726 | 6.74 | 7.8 | 9.726 | 7.8 |
|---|
| Rated Power(kw) | 199 | 192 | 199 | 176 | 177 |
|---|
| Fuel Type | diesel | diesel | diesel | diesel | diesel |
|---|
| Emission | EuroIII | EuroIII | EuroIII | EuroIII | EuroIII |
|---|
|
| Chassis |
|---|
| Transmission | QJ1205,T310R |
|---|
| Front Axle | RL85A,AK468 |
|---|
| Real Axle | AV132,AK468 |
|---|
| Suspension | Power Steering |
|---|
| Steering System | Leaf Spring Front 4/Rear 5 or Air Suspension |
|---|
| Brake System | Dual-circuit Air Break |
|---|
| Tyre | 11R22.5,275/70R22.5 |
|---|
| Body |
|---|
| Structure | Monocoque |
|---|
| Door | F & R inward swing doors, F double R double door leaves |
|---|
| Seats Capacity | |
|---|
| Air Conditioner | 32000Kcal/h |
|---|
